Product Details
Product Description
Product Description
textile cutting machine /fiber cutting machine/waste cloth cutting machinetextile cutting machine /fiber cutting machine/waste cloth cutting machine
Product Description
waste cloth recycling machine/rag tearing machine
1. Introduction of waste cloth recycling machine
This machine is emerging of a new type of mechanical equipment, its English name (Rag cutting machine), is to put the cloth and similar to the textile items chopped thin down as filaments, square one single fiber, short fibers, or debris, flakes, powder state, to meet the needs of the human production and living of production equipment.
2. Technical parameter of waste cloth recycling machine
Model
| MN--500A
| MN-800C
| MN-1200A
|
Power
| 3kw
| 5.5kw
| 9kw
|
Dimension
| 1.8*1*1.1m
| 3.2*1*1.1m
| 6*1.4*1.2m
|
Capacity
| 300kg/h
| 800kg/h
| 1000-1500kg/h
|
Cutting times
| 288/min
| 432/min
| 777/min
|
Conveyor
| 1000*350mm
| 1400*350mm
| 2800*700mm
|
Output conveyor
| NO
| 1400*350mm
| 2800*700mm
|
Cutting thicknes
| 20mm
| 30-50mm
| 30-60mm
|
3. Features of waste cloth recycling machine
1) New rack structure is scientific, reasonable and safe, the performance is reliable; operation is
stable, and easy to handle.
2) Output is high, good loosing and cleaning effects, low-loss, environmental and low noisy.
3 )Adopt to oblique gear speed reducer make the good adaptability during the long time working,
and will not be heat, has long life time.
4 )Equipped with the new designed rack, loosing and recycling combined working models, graduallyprocessing materials, reduce the damage to fiber, improve the length of fiber.
5) Special structure roller and arc-shaped cotton feeding board, and has long life time

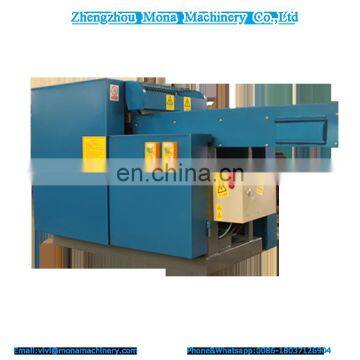

4. Photos of waste cloth recycling machine
