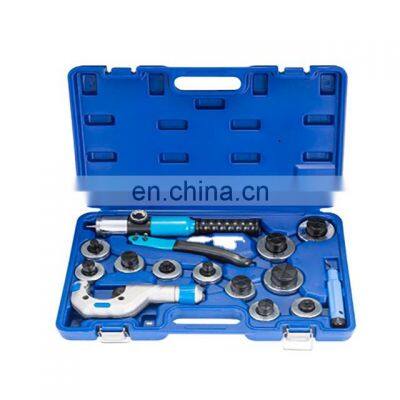

High Quality Hydraulic Copper Tube Expander Tool For Copper Pipe CT-300L
Advantage:
1.No copper coupling needed any more,Save cost of material.
2.Only one side need to be welded.Save cost and reduce possibility of leak.
3.Manual hydraulic mechanism design can expand tubings from 10mm to 42mm diameter.
4.Used for soft copper tube,Alumimum tube,Titanium tube,soft steel and other soft tube.
Model
| CT-300L
|
Brand Name
| Sino Cool
|
Tool Name
| Tube Expander
|
Swage Adapters
| 3-in-1(3/16",1/4",3/8"),5/16",1/2",5/8"& 3/4" O.D.Tubing.The 45°cone for flare.
|
SIX EASY STEPS:
1.Deburr inside of tube.
2.To create perfectly expanded tubing for soldering or brazing you must use soft copper or fully anneal end of tube to be
expanded.
3.Pull expander handle up to 90-degree position.Maintain this position as you screw the appropriate size head over the
center-punch and tighten.
4.Insert the end of the tube over the expander head completely.
5.Pull the lever completely down.
6.Return the lever to the 90-degree position.Remove expanded tube.
