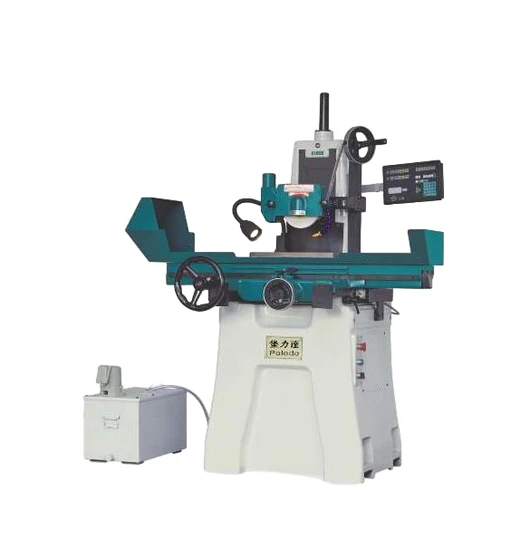

M618 Universal Precision Surface Grinding Machine Powerful Motor

Product Description

Product Description
Surface Grinding Machine Features:
High Efficiency: The Surface Grinding Machine boasts a high spindle speed, ensuring rapid processing and significantly enhancing overall productivity.
Long Service Life: Meticulously designed and manufactured mechanical parts grant the Surface Grinding Machine exceptional longevity.
Low Maintenance Cost: Maintenance is straightforward and cost-effective, keeping operational expenses minimal.
Simple Operation: User-friendly interface and controls reduce training time and associated costs for operators.
Safe and Reliable: With a high safety standard, the Surface Grinding Machine ensures operator protection and peace of mind.
Good Structural Rigidity: Constructed predominantly from cast iron, the machine comprises a bed, column, workbench, grinding wheel, and grinding wheel frame. This design offers excellent shock resistance, wear resistance, and thermal stability, guaranteeing rigidity and stability.
Versatile Applications: These superior performance traits make the Surface Grinding Machine ideal for industrial production, capable of grinding various surfaces and complex forms without the need for mechanical feed.

Product Parameters
Mechanical Properties
Machine Structure: Engineered with precision, our Surface Grinding Machine POLEDA is built using high-grade cast iron. The main castings undergo a meticulous annealing process to eliminate internal stresses, ensuring unparalleled accuracy, robust rigidity, and an extended machine lifespan. Slide Way: Featuring a double V slide way, both left-right and front-back, enhanced with wear-resistant TI URCITE-B resin and precision shovel flower. This design guarantees exceptionally smooth and wear-resistant sliding, making it the ideal choice for both forming and grinding tasks.
Cylindrical Straight Spindle: Outfitted with a P4 ultra-precision angular roller bearing, our machine ensures low noise and vibration-free operation, delivering remarkable torque even at high speeds. This makes it perfectly suited for heavy-duty cutting and a wide range of forming grinding operations.
Automatic Lubrication System: Our advanced circulating automatic lubrication system activates as soon as the main spindle starts. This system ensures forced lubrication to each screw and slide, significantly minimizing slide wear. Additionally, an oil mirror mounted above the column provides real-time monitoring of lubrication conditions, keeping your machine in optimal working order.

Product name	Surface grinding machine
Product model	M618
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) varies based on your specific requirements for color, logo, and other customizations. For some standard items that we have in stock, the MOQ is as low as 1 set.
2.How do you control the quality of the products?
A. Quality is our utmost priority. We have implemented rigorous quality control measures to ensure our standards are consistently met. Our guiding principle is to provide customers with superior quality, competitive pricing, and excellent service.
3.What are the main products of your company?
A: We are experts in manufacturing a variety of machines, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A: We accept a diverse range of trade terms including Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight)..What are your payment terms?
A: Our payment terms are: T/T (Telegraphic Transfer), with a 30% initial payment upon order placement and the remaining 70% balance prior to shipment.
6.What CNC systems do you use?
A: We offer a variety of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice depends on your specific preference.
7.How can I choose the most suitable machines?
A: Please send us the drawings and details of your products and their applications. Our experts will recommend the machines that are most suitable for your needs.
8.What kind of packaging do you offer?
A. We typically use durable plywood cases to ensure that all goods are delivered in perfect condition. Customized packaging is also available upon request.
9.Can your plant do OEM?
A: Yes, we can provide both OEM and ODM services to meet any customer requirements.
10.How about the warranty?
A: Our products come with a one-year warranty after delivery. Additionally, we offer lifetime service support for our machines even beyond the warranty period.

---
