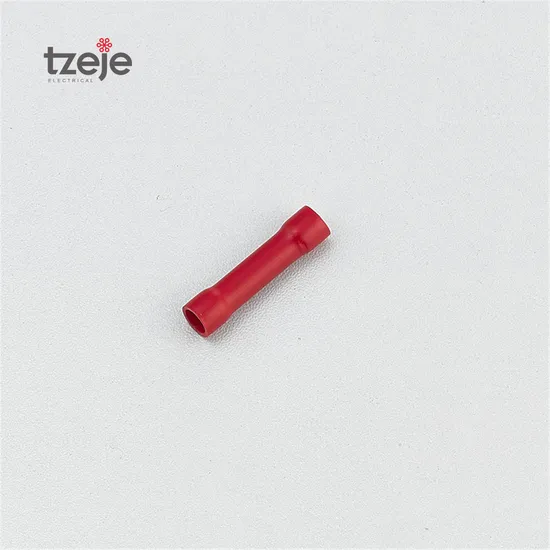

BV1.25 Butt Connector Long Type Copper Tube

Product Description

Product Description
About Products
1. Products Name: Long type middle connector
2. Body material: copper band
3. Insulating Tube: pvc
4. Packing: 100pcs/bag, inner box and export carton
5. Color: Red/Blue/Yellow
Detailed Photos

Item No.	A.W.G	Lead Section mm²	Dimension			L	Max.current	color	Description
			I	dΦ	DΦ
BV0.5	26-22	0.2-0.5	12.0	1.3	3.3	22.0	15A	Red	Middle Connector Long type(TL-JTK type) Material: Copper Insulation: PVC
BV1.25	22-16	0.5-1.5	15.0	1.7	4.3	25.0	19A	Red
BV2	16-14	1.5-2.5	15.0	2.3	4.8	25.0	27A	Blue
BV3.5	14-12	2.5-4.0	15.0	3.0	6.3	25.0	36A	Black
BV5.5	12-10	4-6	15.0	3.4	6.7	25.0	48A	Yellow
BV8	#8	6-10	21.0	4.5	8.5	32.0	62A	Red
BV14	#4	10-16	26.0	5.8	10.5	42.0	88A	Blue
BV22	#4	16-25	29.0	7.7	13.0	50.0	115A	Yellow
BV38	#2	35-50	32.0	9.4	15.3	55.0	160A	Red

About Factory Wenzhou Zhijie Electric Co., Ltd. is a professional manufacturer. Specialized in designing, development, production and marketing of various terminal studs, cold press terminals, connectors, spiral type street crimping caps and cable accessories. The company refer to Europeam and American technical requirements and quality development, the products have passed CE, ROHS and SGS.
The company boasts of advanced automation equipment and chek out test sets, high quality management team and employees of grass roots, all of these enable the company to establish good image of brand.
Abiding by the quality policy of promoting production with qulaity, seeking development with technologu, winning benefit with management, and attracting customers with credit standing, we sincerely hope to cooperate with friends from all social sectors at home and abroad, made development and creat brilliance together.
Package & Delivery
