Advanced Electric Panel Saw for Accurate Wood Cutting Projects

Product Description

Product descriptions from the supplier Overview

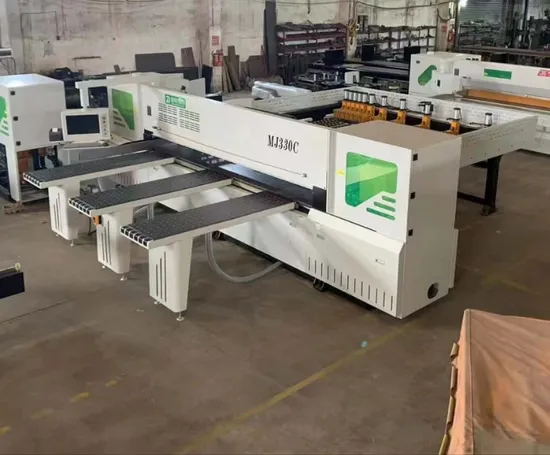

CNC beam saw
computer controlled CNC beam saw machine

Model	MJ270	MJ330	MJ380
Sawing length	2700mm	3300mm	3800mm
Sawing thickness	85/100/120mm	85/100/120mm	85/100/120mm
Dia. Of main saw blade	355/400/460mm	355/400/460mm	355/400/460mm
Axis dia. of main saw blade	30/60mm	30/60mm	30/60mm
Rotate speed of main saw blade	3950/4500 rpm	3950/4500 rpm	3950/4500 rpm
Dia. of grooving saw blade	180mm	180mm	180mm
Axis Dia. of grooving saw blade	25.4/30mm	25.4/30mm	25.4/30mm
Rotate speed of grooving saw blade	6300 rpm	6300 rpm	6300 rpm
Saw carriage forward speed	0-120 m/min	0-120 m/min	0-120 m/min
Saw carriage back speed	60-120 m/min	60-120 m/min	60-120 m/min
Head saw motor	7.5/11 kw	7.5/11 kw	7.5/11 kw
Grooving saw motor	1.5kw	1.5kw	1.5kw
Saw carriage drive motor	2.2kw	2.2kw	2.2kw
Automatic feeding motor	1.2kw	2kw	2kw
Pusher motor	2kw	2kw	2kw
High pressure blower motor	2.2kw	2.2kw	2.2kw
Total power	17/21kw	21/27kw	21/27kw
Automatic feeding speed	0-120 m/min	0-120 m/min	0-120 m/min
Operation pressure	5-7kg/cm	5-7kg/cm	5-7kg/cm
Workbench height	950mm	950mm	950mm
Net weight	5000kg	6000kg	7000kg
Dimensions (L*W*H)	5500*5600*1700mm	6100*6200*1700mm	6700*6800*1700mm

Product Details
Air floating platform under pressure beam,avoiding board scratchingand assuring smoother board movement.
With latest design mechanical clip
Taiwan rack and pinion
Imported electrical parts
Application
Certifications
Exhibition
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
