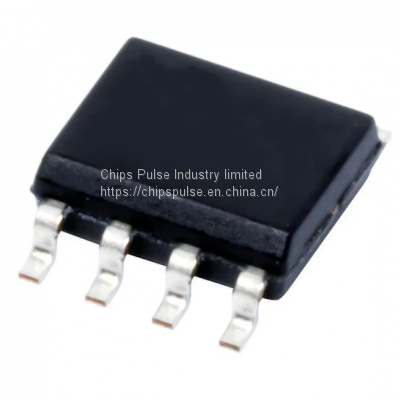

SN75176ADR

Product Details

Product Description

Product Description
specifications
Product Properties Attribute Value Select properties
Manufacturer: Texas Instruments
Product Category: RS-422/RS-485 interface IC
RoHS: Details
Series: SN75176A
Installation style: SMD/SMT
Package/box: SOIC-8
Function: Transceiver
Number of drivers: 1 Driver
Receiver quantity: 1 Receiver
Data rate: 10 Mb/s
Supply voltage - Max: 5.25V
Supply voltage - Min: 4.75V
Minimum operating temperature: 0 C
Maximum operating temperature: + 70 C
Packaging: Reel
Encapsulation: Cut Tape
Encapsulation: MouseReel
Brand name: Texas Instruments
Duplex: Half Duplex
Working power current: 50 mA
Operating power supply voltage: 5 V
Products: RS-422/RS-485 Transceivers
Product type: RS-422/RS-485 Interface IC
2500
Subcategory: Interface ICs
Unit weight: 180 mg

---
