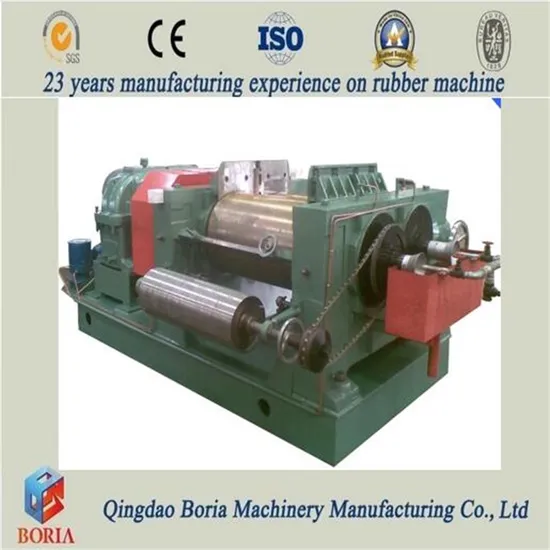

750mm Automatic Rubber Mixing Mill/Open Mill Rubber Mixing Machine/Two Roll Rubber Open Mixing Mill

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Color
as Customer′s Requirements
Certificate
ISO9001,BV,CE
Voltage
380V or as Your Requirements
Delivery Time
Within 30 Working Days After Receiving The Deposit
Transport Package
Standard Export Packing
Specification
3900× 1700× 1800mm
Trademark
BORIA
Origin
Qingdao
HS Code
8477800000
Production Capacity
50 Sets Per Month

Product Description

internal mixing machine with CE certificate
I. Introduction
1. The Rubber Machinery is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.
2. The roller adjustment device adopts worm gear and worm drive respectively. Electric distance adjustment is optional, which is easy to operate.
3. Drive system: The motor is directly connected to the drum through the reducer ZLY hard tooth surface reducer to drive the rubber mixing drum to rotate, which minimizes the waste of motor power during the transmission process.
.
4. The Rubber Machinery is the advanced new type mixer equipment of rubber and plastics industry, various features are so advanced as the same product of foreign. For seal designing, we get excellent result in sealing and everlasting.
II. technical parameter
Roller diameter Φ300mm(12")
Working length of roller 750mm(30")
Roller speed ratio 1:1.17
Linear velocity of front roll 15.1m/min
The biggest roller spacing 2-15mm
One feed 15~20kg
Deceleration type CSY235
Motor type and power YM-6,22Kw Weihai power for a long time
Structure of the way Welded base integral
Roll rotation mode Bearing rotation (dry oil lubrication)
Roll material Chilled cast iron
Safe braking mode Hand pull safety switch, motor reverse
The quality of the product 5900kg
Overall dimensions 3900×1700×1800

III. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.
