IEC60695-2-10, UL746A Flammability Material Glow Wire Tester/Testing Apparatus

Product Description

IEC60695-2-10, UL746A Flammability Material Glow Wire Tester

Main Technical parameter

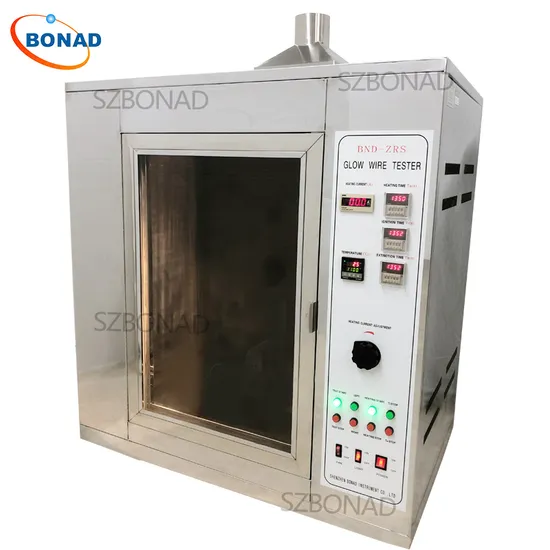

Model	BND-ZRS Glow Wire Test Equipment
Glow wire temperature	500 ~ 1000 ºC ± 2 ºCadjustable
Heating time	0-999.9s ± 0.1s,adjustable (normally choose to 30s)
Ignition timer	0-999.9s ± 0.1s, automatically records, manually suspended
Thermocouple	Φ0.5mm sheathed K-type thermocouple.
Flame extinguish time	0-999.9s ± 0.1s, automatically records, manually suspended
Glow wire	Φ4 mm nickel chromium wire.
Hot depth	7mm ± 0.5mm (to maintain the pressure of 1N ± 0.2N hot products into the test)
Sample frame speed	about 14mm / s
The pilot background	black background.
The pilot process	automatic testing procedures, independent ventilation
Reference	IEC60695-2-10, UL746A,GB/T5169.10-2006
Studio volume	0.5 cubic
Equipment size	1000mm wide × 650mm deep × 1300mm high
Power supply	AC220V ± 5%, 50Hz, 0.6KVA

Work conditioning :
1) Work temperature is between 5ºC and 40ºC.
2) Relative humidity is not more than 85%.
3)Power supply should be AC220V±5%, 50HZ.
4)Use standard electrical outlet. Use 250 Voltage by ten ampere /Three Phase standard electronic outlet and earthing pole needs connect to earth wire.

Temperature of the tip of glow-wire	Electric current
550ºC	65A~75A
650ºC	80A~90A
750ºC	95A~105A
850ºC	110A~120A
960ºC	130A~140A

1) After putting the test specimen to the fixture, test specimen could be driven by electronic engine and could go left or right automatically control in the test process.
2) Mount glow wire. Test specimen carriage turns right to glow wire with hammer pulling the carriage in order to keep the force within 1 newton. The force shall be maintained at this value when the glow-wire or the test specimen is moved horizontally one toward the other. The penetration of the tip of the glow-wire into the through the test specimen shall be limited to 7mm.
3) Application time that glow wire tip is applied to the test specimen is controlled by numeric relay beforehand.
4) Ignition time is measured by numeric and controlled by button.
5) Flame extinguishing time is measured by numeric relay and controlled by button.
6) Glow wire temperature is controlled by adjusted glow wire current and measured precisely by Temperature controller.
