China Factory CNC Router A4-1530-L8-PRO Atc Woodworking Engraving with Atc Spindle for Wood Door Engraving and Cutting

Product Description

Product Description

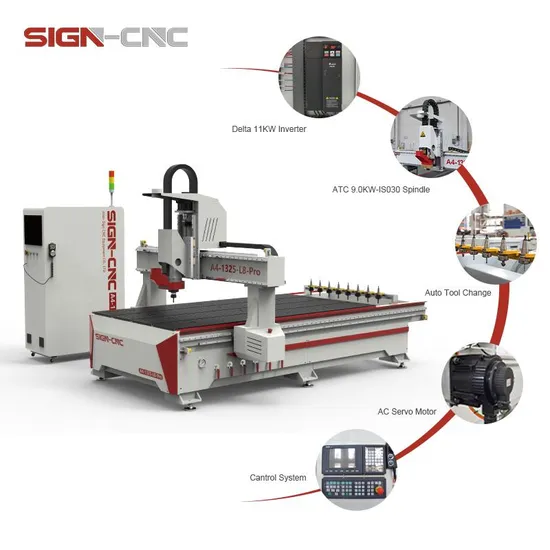

China factory CNC Router A4-1530-L8-Pro ATC woodworking machine with atc spindle for wood door engraving and cutting
Product Parameters

Model	A4-1325-L8-Pro	A4-1530-L8-Pro
Working area	1300*2500mm	1500*3000mm
Z feeding	300mm
Frame structure	Steel casting-welding
Type of table cover	Vacuum table with T-slot
Vacuum pump	7.5kw air cooling
Z axis transmission	Ball screw and 25mm square guide rails
X Y axis transmission	25mm square guide rails + Helical rack
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	HQD 9.0 KW
Tool Magazine	8 - 12 pc tools
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
Drive motor type	AC servo motor and driver
operating system	Syntec 60WE control system
Dust Collector	3kw with double bags
Lubrication system	Automatic
Supported software	Artcam with post processor
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	Two year

Application and Sample
Furniture industry: Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate cabinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box
Electrical industry: PVB circuit board, insulation material, LED display screen
Packaging & Shipping
Company Profile
FAQ
Q1:What about your after-sales service
A1: Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.

---
