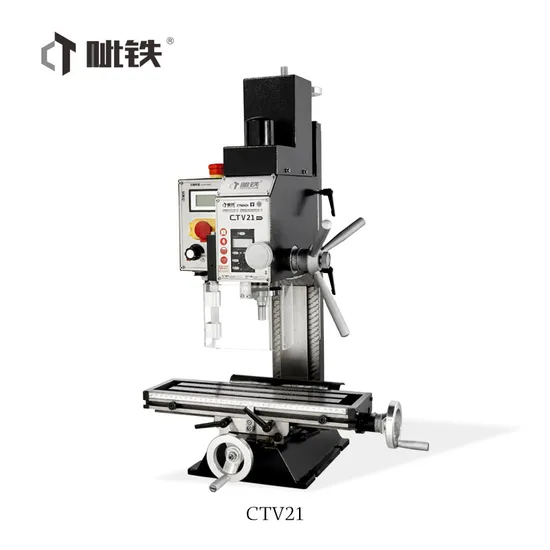

CTV 21 Variable Speed Milling Machine for Metal Working

US$855.00
1-4 Sets
US$821.00
5-9 Sets
US$787.00
10+ Sets

Basic Info.

Model NO.
CTV21
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
510*490*750mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Packaging & Delivery

Package Size
45.00cm * 45.00cm * 87.00cm
Package Gross Weight
80.000kg

Product Description

Max.Drilling capacity 20mm
Max.milling capacity 52mm
Max.vertical milling capacity 18mm
Table size 400*120mm
T-slots size 10mm
X spindle travel 220mm
Y spindle travel 160mm
Z spindle travel 200mm
Spindle taper MT2
Spindle travel 50mm
Distance from spindle to column guide rail 170mm
Distance from spindle end to table surface 275mm
Spindle box left&right rotation angle ±45°
Spindle speeds 100~2250 rpm/Stepless
Motor Power 750w
Net weight/Gross weight 60/80Kg
Overall dimensions 510x490x750mm
Package Size: 450x450x870mm
