High Performance Rubber Calendering Machine with Cold Hard Alloy Steel Rollers

Product Description

High Performance Rubber Calendering Machine with Cold Hard Alloy Steel Rollers
Supply Range Two-Roller Machines: Models include XY-160*320, XY-252*720, XY-360*1120, XY-450*1400, and XY-550*1650. These machines are designed to deliver superior performance and reliability.
Three-Roller Machines: Models include XY-160*320, XY-252*720, XY-360*1120, XY-450*1400, and XY-550*1650. Engineered for efficiency, these machines offer exceptional calendering capabilities.
Four-Roller Machines: Models include XY-160*320, XY-252*720, XY-360*1120, XY-450*1400, and XY-550*1650. Achieve unparalleled precision with our advanced four-roller calendering machines. Product Description Our rubber calendering machines are perfect for a wide range of applications including rubber and plastic calendering, precise sheeting, textile fabric fractioning, double side coating, and sheet laminating. Designed for accuracy and consistency.

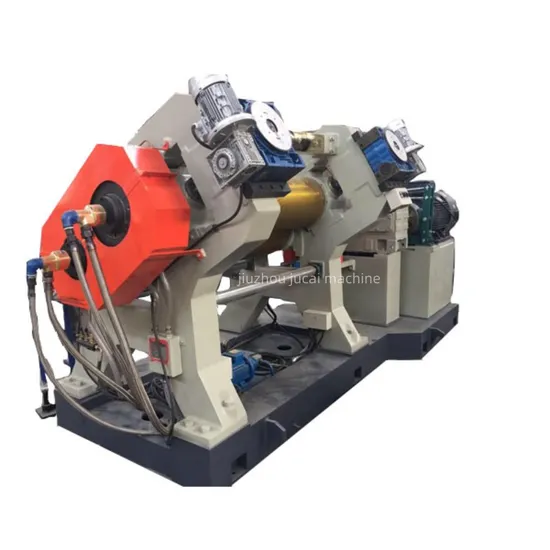

Detailed Photos
Product Parameters

Model	XY-230*630	XY-252*720	XY-360*1120
roller diameter	230	252	360
roller working length	630	720	1120
roller ratio	1:1:1/1:1.2:1	1:1:1	1:1:1
middle roll linear speed	0.8-8 M/MIN	2-15.9	3-20
Adjusting nip range	0-7	0-10	0-10
Min calendering thickness	0.2MM	0.2MM	O.2MM
calender product width	500	550	920MM
motor	7.5 KW	22 KW	45KW
machine weight	about 3 t	about 5.5 t	about 14 t

Model	XY-400*1200	XY-450*1400	XY-610*1730
roller diameter	400	450	610
roller working length	1200	1400	1730
roller ratio	1:1:1	1:1:1	1:1:1
middle roll linear speed	3-26.39	2.62-26.62	5.4-54
Adjusting nip range	0-10	0-10	0-20
Min calendering thickness	0.2	0.2	0.15
calender product width	1200	1250	1500
motor	55	75	160
machine weight	about 18t	about 21 t	about 43t

Machine Display
Company Profile
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.

---
