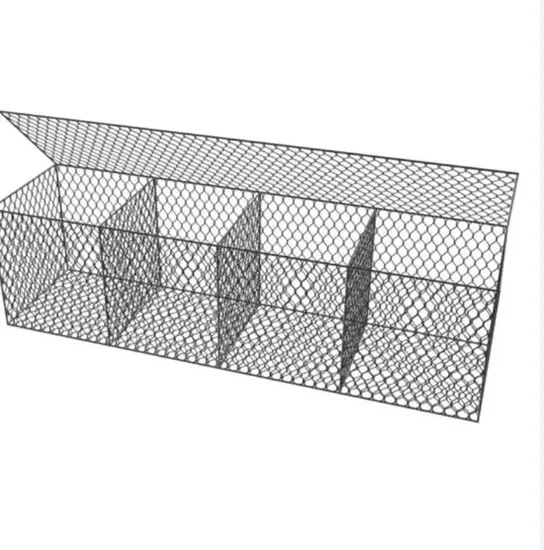

High Quality Hot Dipped Galvanized Retaining Wall Gabion Boxes Stone Cages Gabion Baskets Hexagonal Wire Mesh Gabion Box

Product Description

Product Description Gabion cage produced by high corrosion resistance, high strength, ductility of low carbon steel wire or coated PVC steel wire.
Gabion basket is made of Mechanical braided, the use of the mesh made of box structure. Gabion mesh box wire diameter is generally between 2.0-4.0mm, the tensile strength of Gabion wire is not less than 38kg/m2, zinc content is generally higher than 245G /m2, Gabion cage mesh edge line diameter is generally greater than the diameter of the mesh wire. The length of the twin-stranded part shall not be less than 50mm to ensure that the metal coating and PVC coating of the stranded part of the wire are not damaged. The length of the twin-stranded part shall not be less than 50mm to ensure that the metal coating and PVC coating of the stranded part of the wire are not damaged.
Product Parameters

GABION MESH
Opening (mm)	Wire Diameter(mm)	Strands	Size
60*80	2.0-2.8	3	2m*1m*1m 3m*1m*1m 4m*1m*1m 2m*1m*0.5m 4m*1m*0.5m Or as request
80*100	2.0-3.2	3
80*120	2.0-3.2	3
100*120	2.0-3.4	3
100*150	2.0-3.4	3
120*150	2.0-4.0	3

Hot dip galvanized gabion box
Size(m)	Mesh Size(cm)	Diameter(mm selvage wire/mesh wire/tie wire
2*1*1 2*1*0.5	8*10 10*12	3.4/2.7/2.2 3.9/3.0/2.2 3.9/2.7/2.2
3*1*1 3*1*0.5
4*1*1

PVC coated gabion box
Size(m)	Mesh size(cm)	Before PVC Diameter(mm) selvage wire/mesh wire/tie wire	After PVC Diameter(mm) selvage wire/main wire/tie wire
2x1x1 2x1x0.5	8x10 10x12	3.4/2.7/2.2	4.4/3.7/3.2

Custom/optional types
Application
Exhibition
Packaging & Shipping
FAQ 1. Is your samples free?Yes, we can provide free samples to my clients.2. How many days will the samples be finished?Generally the samples will be sent immediately by the air express in 2~3 days if the goods are in stock.3. And how about the mass production?Normally within 20-25 days according to your order.4. Are you a manufacture?Yes, we have been in providing the products in this field for 15 years.5. Is customized available?Yes, we can OEM according to your detailed drawings.

---
