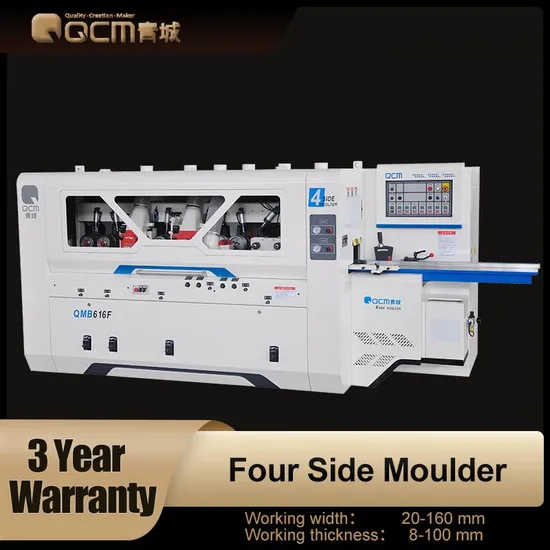

QMB616F 4 Side Wood Moulder Planer Machine Woodworking Machinery

Product Description

QMB616F 4 Side Wood Moulder Planer Combined And Thickness Made In China Factory Manufacture Supplier Woodworking Machinery Thicknesser Wood Planer Machine

Model		QMB616F
Specifications	Working width	20-160 mm
	Working thickness	8-100 mm
	Min.working length(intermittent/continuous)	530/300 mm
	Dia. of spindle	Φ40 mm
	Feeding speed	8-33 m/min
	Rotation speed of spindle	/
	The First spindle speed	6800 r/min
	Other spindle speed	8000 r/min
	Cutter dia of first bottom cutter	Φ125 mm
	Left/Right vertical cutter	Φ115-Φ170 mm
	The first upper cutter	Φ105-Φ150 mm
	The Second upper cutter	Φ105-Φ150 mm
	Back bottom cutter	Φ105-Φ150 mm
	The Second right vertical cutter	/
Motor Power	Total power	31.75/43 kW/HP
	The First bottom cutter	4/5.5 kW/HP
	Left vertical cutter	4/5.5 kW/HP
	Right vertical cutter	4/5.5 kW/HP
	The first upper cutter	5.5/7.5 kW/HP
	The second upper cutter	4/5.5 kW/HP
	The second bottom cutter	5.5/7.5 kW/HP
	The second right vertical cutter	/
	Feeding motor	4/5.5 kW/HP
	Beam lifting motor	0.75/1 kW/HP
Pressure & Diameter	Air supply pressure	0.3-0.6 MPa
	Vacuum port diameter	6*Φ120 mm
Dimensions & Weight	Overall dimensions	3720*1600*1700 mm
	Weight	3700 kg

Product Details
	1. ENTIRE CAST IRON Extra heavy one-piece, cast Iron machine frame is specially heat treated for maximum stability and rigidity by standard configuration.
	2. PROFESSIONAL ELECTRICAL APPLIANCES Imported electrical products and appliances insure the whole machine run well with a stable performance.
	3.AIRTAC CYLINDER Pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect.
	4. HIGH PRECISION SPINDLES All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
	5. HEAVY DUTY GEARBOXES The feed rollers are driven through a combination of Extra heavy universal shafts and gearboxes, ensuring no loss of power transmission. A smooth feeding effect is assured.
	6. OUTSTANDING FEEDING PERFORMANCE There are more top and bottom powered rollers than in most competitor's models, and this is an important reason for outstanding feeding performance.
	7. HARD-CHROMED FEED TABLE The entire cast iron - chromed In-feed table is normalization heat treated for maximum stability. in-feed table & fence adjustment is quickly accomplished by means of a quick-setting levers.
	8. SAFETY ENCLOSURE The full heavy gauge steel sound Insulated safety enclosure serves as a chip guard and helps to reduce noise and has strobe free lighting.

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.
It's been 70years since we have devoted our-self to the development and manufacturing of woodworking machinery. As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.
Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.
FAQ
Below FAQ for your reference, if you have any further questions, we are always here for you.
1.Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 70 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.
2.What's your payment term?
30% deposit and 70% balance should be paid before delivery.
3.How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4.Warranty of your products?
Its warranty is 12 months.
5.What's your leading time?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.
6.What's your delivery term?
---FOB shanghai/Ningbo

---
