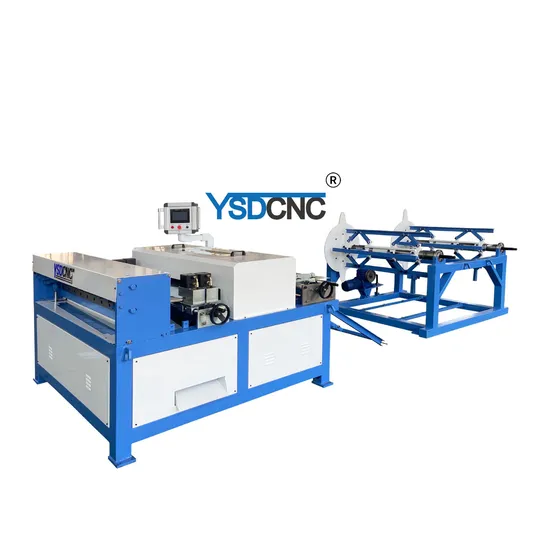

Ventilation Square HVAC Duct Forming Machine Auto Sheet Metal Duct Line 2

Product Description

Product Description
Product Features:
It's mainly for uncoiling, levelling, beading, punching, lockforming. Because of its small space requirement and easy to
install and operate the machine can upgrade to "super line 4".
Advantage of Products:
· The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock
machine. · The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to
avoid wasting. · Mechanical arm clutching, locating and transferring platform · Displacement lock machine · Line 2
host+ Single rack

Performance Features: · All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times. ·
Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks. ·
With production memory functions, the production orders can be tracked and checked.

Specification

Model	YSDCNC-II-1250	YSDCNC-II-1500
Thickness	0.4-1.5 mm	0.4-1.5 mm
Max .Width	1250 mm	1500 mm
Max working speed	15 m/min	15 m/min
Max weight of coiler	2*7000 kg	2*7000 kg
Power	7 kw	8.5 kw
Weight	3200 kg	3700 kg
Dimension	5400x1950x1450 mm	5400x2150x1450 mm

Details Products
Electric Decoilers
YSDCNC Auto line II contains one set electric decoiler with two coils, each coils max capacity up to 7 tons.

Main Functions
This is main part of YSDCNC auto line II, which contains leveling, Beading,Notching, Cutting and Bending.
it is possible to accept customization from buy's special requirement.


Control System
Control system mainly use Mitsubishi PLC and driver, but PLC and driver is also optionally

Electric System
Control system mainly use Mitsubishi PLC and driver, but PLC and driver is also optionally


Hydraulic valves
Hydraulic oil valve is Yousheng brand from Taiwan, Rexroth is optional.

Our Service

1:The machine provides 36-month warranty and free online support and service from engineers. 2: Provide online technical support
and service for life, even after the warranty period, the engineer team can always provide you with online service at no
additional cost. (All our clients have this service, we think it is very necessary)
3: During the warranty period, we can send you spare parts for free replacement.
4: After the machine is completed, free whatsapp online inspection service will be provided.Bend the product according
to your requirements, then test it.
5: Pack and record the video, and submit it to you for acceptance service, or you can directly watch online on whatsapp.
6: We can also provide the following information, and it is very necessary.photo of the rating plate you apply on the
machine itself-basic manual for the machine in English.

Hello, our standard model has a large number of stock, regular shipping time 0~7 days. The custom model can be completed in
7-25 days (according to the size of the machine, different time.

We are a 7-year member of, and we support third-party guarantee transactions of credit insurance transactions,
which can better protect your financial security.

The company provides a variety of transaction methods: EXW, FOB, CIF, DDU, DDP and other education
methods support customs declaration, export, transportation and delivery to the door and other one-stop services.




You can trade through TT, wire transfer, transfer, paypel, letter of credit, credit order and other transaction methods.


We can deliver to your forwarding warehouse, or directly to your door, and deliver the goods to your hands.We cooperate
with well-known international shipping companies such as COSCO Shipping, and we can also be responsible for the
customs clearance of your goods, delivery of goods to your door, etc.And we provide free shipping insurance. If there is
any damage during transportation, our insurance company will settle the claim for you, and we will send you free shipping.
(If you have any questions, please contact us as soon as possible, and we will guide you how to operate? We are your
most trusted partner, we are your eyes and hands.)

Our Company
Nanjing Shanduan CNC Machine Tool Co., Ltd. has 38 years of industry experience. We specialize in four main product lines: air duct
production lines, CNC bending machines, shearing machines, laser cutting machines, and shredders for energy recovery. With over 300
employees, including 30 sales engineers and 35 service engineers, our factory spans 40 acres and is equipped with 3 floor-type boring
and milling machines, 6 gantry planers, 10 radial drilling machines, and 25 CNC machining centers. In total, we have over 200 large
and small-scale equipment.

With over 100,000 customer case experiences and product transportation to over 100 countries, we have a proven track
record in serving a wide range of clients. We are dedicated to assisting you in securing orders and providing high-quality
products and services. Our commitment to excellence has resulted in many satisfied customers who are eager to
become our agents.

FAQ
Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit
in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.

---
