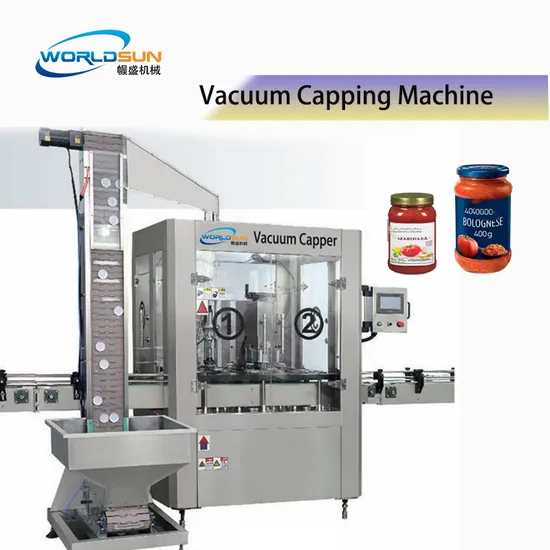

Vacuum Capping/Capper Machine for Glass Jars Full Automatic/High Speed

Product Description

Capping Machine for Screw Cap/ Flip-Top Cap/Ropp Cap/Lug Cap/Crown Cap capper machine Product Parameters

Item / Model	CM-1	CM-4	CM-6	CM-8	CM-10	CM-12	CM-15
Number of Capping heads	1	4	6	8	10	12	15
Capacity-500ml (B/H)	2000bph	4000bph	7000bph	9000bph	12000bph	18000bph	24000bph
Power	0.55kw	1.5kw	1.5kw	2.2kw	2.2kw	3.5kw	3.5kw
Air consumption	0.3m3/min.	0.3m3/min.	0.4m3/min.	0.4m3/min.	0.5m3/min.	0.5m3/min.	0.6m3/min.
Weight (T)	0.6	0.8	1.2	1.6	1.9	2.2	2.6
Applicable container	Bottle ,cup,can,jar
Container materials	Plastic ,Glass,Metal
Cap type	Plastic Screw cap,Press-and-Turn cap,Flip cap, stopper cap, ROPP cap, crown cap ,twist-off cap
Container diameter	30-110mm
Container height	50-260mm, 100-350mm

Product Description
Flip top cap closing machine ROPP capping machine Screw capping machine
Stainless steel base mounted on adjustable floor levellers for easy alignment
Bearing frame and all surface components manufactured in SUS 304 stainless steel
Manual height adjustment via column
Manual and independent speed variation ,
Caps in chute photocell, machine will not work if there are no caps present on chute
Magnetic clutch capping head for screw caps,and the torque force adjustable.
Stainless steel Cap pickup mould with wear-resistant rubber lining, easy change and low cost materials.
Stainless steel electrical control panel with 24 volt auxiliary commands
Equipped with Siemens material on control system.
Automatic cap feeder, chute and applicating head
Main motor Overload clutch protection system
Alarm warning light and acoustics
Safety guarding with interlock devices
