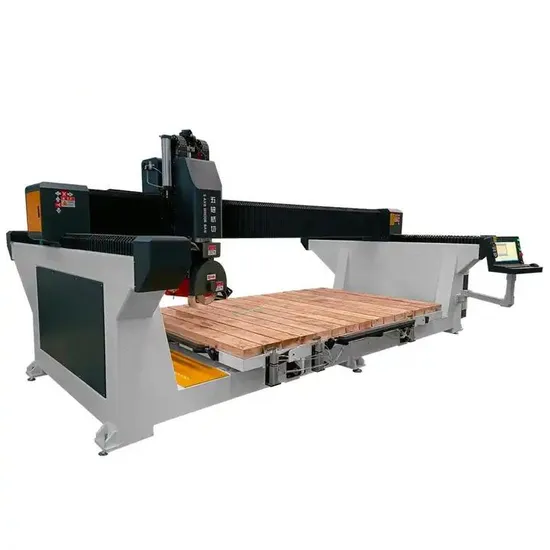

5 Axis Bridge Cutting Bridge Round Saw Block Cutter Stone Cutting Machine

Product Description

The bridge saw machine is more cost-effective than the 5-axis cutting machine. This is a new type of machine developed by Dafon machinery. It mainly processes some conventional shapes such as washbasin countertops, circles, and rectangles. The configuration can be rotated 45-90 degrees Cutting head and engraving head, compared with the conventional 4-axis bridge saw cutter, have more complete functions, and the processing table is faster, more accurate, and more efficient

This adopts PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device. There are Chinese & English double operation language, using inverter to control left right feeding , It adjusts the speed according to stone material, using hydraulic lifting system which equipped through 4 guide post, also this machine provides the unique side beam protection device, main spare parts adopted imported high-quality world famous brand materials. The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy operation. It is particularly suitable for high value granite and big size marble.

Technical Parameter
Functions: * make vertical, inclined& horizontal Cut with Disc Blade * cut curves with Contour Cutting * machine with the Core Tool such as drill, end mill & excavation wheel * Incremental routing for sink cutting, profiling & engraving

<Special Control System> More intelligent and easy operate,it can control the spindle and saw blade very well,Use advanced PLC control system and human-machine interface with touch screen to offer friendly and inteligent control.

<Saw Blade> It can cut Marble stone Granite fast speed and more smooth. Almost no need polishing after cutting

<11KW Stone Cutting Spindle> It can cutting engraving drilling on marble Spindle and saw blade Laser alignment device mounted on the head signs the blade's cutting line

<All Axis Have The Dust Protect Device> It can protect the guide rail and rack from dust or crumbs. Prolong the using life of the machine.

We provide skilled and richly experienced technicians for installation and after-sales service.

Samet Intelligent Manufacturing Co., Ltd. was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc. With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Our Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.FAQ
Q:How to place order to your company?
A: 1.Inquiry-Professional quotation
2.Confirm the price,lead time, logo, payment term etc.
3.Xianda sales send the Proforma Invoice with seal.
4.Customers make the payment as a deposit and send us Bank receipt
5.Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time
Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years
Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service
Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.

---
