8~20m Forklift Car Self-Walking Mobile Lifting Telescopic Towable Articulating Self Propelled Crank Arm Man Work Platform Table Aerial Work Platform Boom Lift

Product Description

8~20m Forklift Self-Walking Mobile Lifting Towable Articulating Boom Lift.
Our Advantages

Product Description:
Introducing the aerial working platforms from Shandong China Coal Construction Machinery Co., Ltd. These platforms are designed to make difficult and dangerous jobs easier, especially for continuous work at high altitudes in various settings such as airport terminals, stations, shopping malls, and more. The compact, flexible, and convenient self-propelled aerial working platform eliminates the need for scaffolding, providing a safe and efficient solution for reaching heights and completing tasks. Operated by a single person, this platform allows for lifting, forward, backward, steering, slewing, and other actions, significantly enhancing work efficiency.

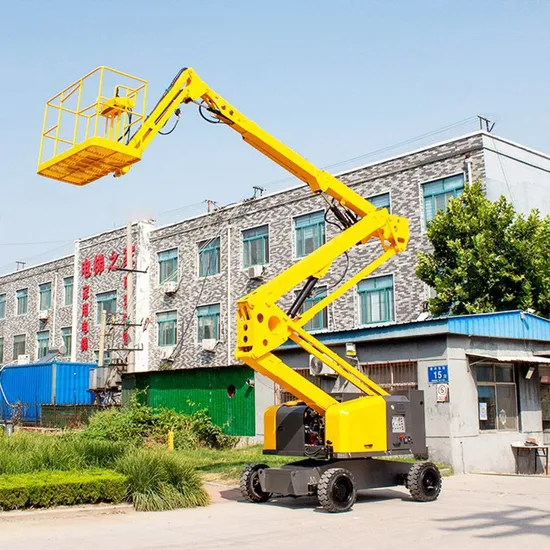

Self-Propelled Articulating Arm Lifting Working Platform The Self-Propelled Articulating Arm Lifting Working Platform from Shandong China Coal Construction Machinery Co., Ltd. is designed to meet a variety of operational needs. It can perform cantilevered operations, cross obstacles, and be lifted and lowered for multi-point operations. The platform rotates 360 degrees, has a large load capacity, and can accommodate two or more workers simultaneously along with necessary equipment.
Main Performance Advantages: Works across a wide range of obstacles 360-degree rotation operation Utilizes a 48v combined battery pack for extended battery life Full proportional distributed control for flexible operation in complex environments Battery/diesel engine dual power options for diverse usage environments Features advanced turning drive technology for a smaller turning radius and enhanced maneuverability Equipped with two-wheel/four-wheel drive technology for strong power and high gradeability This working platform is ideal for large-scale operations such as stations, docks, shopping malls, sports venues, residential properties, factories, mines, and workshops. Its mobility, ease of transfer, and attractive appearance make it a versatile choice for various industries.
Self-Propelled Arm Lifting Working Platform
Arm lifting platform, offered by Shandong China Coal Construction Machinery Co., Ltd., can be categorized into straight arm and arm models based on the arm deployment method. This versatile platform finds extensive applications in various industries such as factories, warehouses, exhibition halls, construction sites, logistics centers, and more. It is ideal for high-altitude operations and maintenance tasks in sectors like power, transportation, petroleum, chemical, hospitality, and mining.
Customizable to meet specific requirements, this self-propelled lifting platform is designed to enhance efficiency and safety during elevated work activities.
Product Description
Self-propelled Arm Lifting Working Platform Experience the convenience and efficiency of our self-propelled arm lifting working platform from Shandong China Coal Construction Machinery Co., Ltd. This versatile platform is designed to meet your specific needs with the following features:
The turntable rotates a full 360 degrees for enhanced maneuverability. With a storage height of 2 meters, easily navigate through doorways. Effortlessly work in crowded sites with ease. Enjoy safe operations with limited loading capacity. Two people can work simultaneously with tools. Control all actions with a single handle for seamless operation. Equipped with two-wheel drive for enhanced mobility. Experience fast lifting speed and zero tail swing, perfect for compact spaces. Durable, reliable, and easy to maintain for long-term use. Enhance your work efficiency and safety with our self-propelled *** arm lifting working platform. Contact us today to learn more!
Product Parameters
Experience efficiency with our 8~20m Forklift Self-Walking Mobile Lifting Towable Articulating Self Propelled Arm Man Lift Aerial Work Platform. Ideal for various tasks. CE certified

Overall dimensions	ZMQBPT10C/D	ZMQBPT12C/D	ZMQBPT14C/D	ZMQBPT16C/D	ZMQBPT18C/D	ZMQBPT20C/D	ZMQBPT22C/D
Overall length (folded)	5.2m	5.2m	6.3m	7.0m	7.18m	8.35m	8.86m
Overall length (folded)	1.65m	1.65m	1.78m	1.93m	2.18m	2.2m	2.25m
Overall height (folded)	2.35m	2.35m	2.35m	2.35m	2.2m	2.53m	2.53m
Table size	1.6*0.8m	1.6*0.8m	1.6*0.8m	1.6*0.8m	1.8*0.8m	1.8*0.8m	1.8*0.8m
Number of working arms	5 sections	5 sections	5 sections	5 sections	5 sections	5 sections	5 sections
Travelling speed (folded)	4km/h	4km/h	4km/h	4km/h	4km/h	4km/h	4km/h
Lifting Travelling speed (Unfolded)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Mechanical arm swing	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%
forearm luffing angle	130°	130°	130°	130°	130°	130°	130°
Min.turning radius	Outer wheel 4.4m Inner wheel 2.25m		Outer wheel 4.6m Inner wheel 2.35m		Outer wheel 4.55m Inner wheel 1.85m	Outer wheel 5.2m Inner wheel 2.2m
Height of the worktable from the floor (folded)	620mm	620mm	300mm	200mm	90mm	-100mm	-200mm
wheelbases	1907mm	1907mm	2017mm	2017mm	2100mm	2540mm	2540mm
track width	1440mm	1440mm	1550mm	1550mm	1800mm	1830mm	1830mm
weight	4900kg	4900kg	6596kg	6900kg	8550kg	9200kg	11000kg
Main Performance Parameter
Max. working height	10m	12m	14m	16m	18m	20m	22m
Max. platform height	8m	8m	12m	14m	16m	18m	20m
Max. operating radius	5.3m	5.3m	6.9m	8m	8.9m	10.6m	11.7m
Max. spanning height	5.1m	5.1m	6.6m	7.6m	8.25m	8.55m	9.45m
Max. Climbing	25°	25°	25°	25°	25°	25°	25°
worktable load	230kg	230kg	230kg	230kg	230kg	230kg	230kg
Max. number persons carried	Two people	Two people	Two people	Two people	Two people	Two people	Two people
worktable rtation angle (optional)	±80° (overall length will increase 200mm )
Drive parameters - diesel
Rotary angle of rotary table	360° continuous
Type of power	diesel
Max. output power	37kw
Engine type	Bailitong,Chinese Engine
Emission standards	China/EPA/Euro V
Drive parameters - electric
Rotary angle of rotary table	355°discontinuous
Type of power	rechargeable battery
Travel drive	5.5kw	5.5kw	6.3kw	6.3kw	6.5	7.5kw	7.5kw
Lifting drive	4kw	4kw	4kw	4kw	5.5kw	5.5kw	5.5kw
Battery Voltage	2v	2v	2v	2v	2v	2v	2v
battery capacity	250ah	250ah	250ah	250ah	330ah	330ah	400ah
Battery Charger	48v35A	48v35A	48v35A	48v/40A	48v/40A	48v/45A	48v/45A
Number of batteries	24 pieces	24 pieces	24 pieces	24 pieces	24 pieces	24 pieces	24 pieces
Hydraulic oil tank volume	60L	60L	60L	60L	80L	80L	80L

Detailed Photos
Discover the 8~20m Forklift Self-Walking Mobile Lifting Towable Articulating Self Propelled *** Arm Man Lift Aerial Work Platform Boom Lift Work Platform Lifting Table by Shandong China Coal Construction Machinery Co., Ltd. Ideal for various lifting tasks with CE certification and a 6t excavator specification.
