Bestlink Factory Price Hydraulic Granite Marble Stone Splitting Cutting and Stamping Machine

Product Description

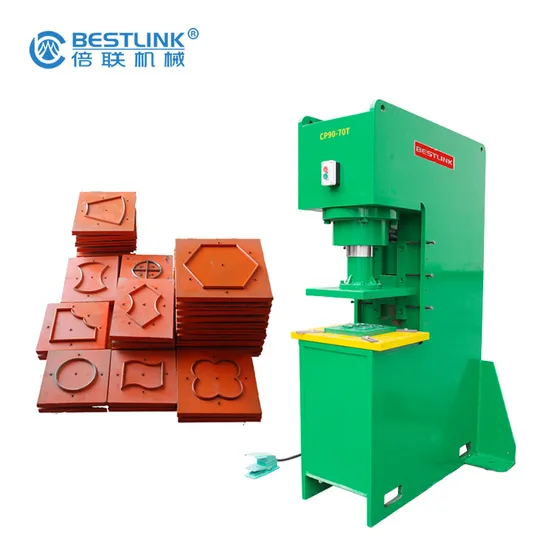

Bestlink Factory Price Hydraulic Granite Marble Stone Splitting Cutting and Stamping Machine
1.CE Certificate2.40 different models
3.It is used to press letfover and slabs
As a professional factory for producing this kind of stone stamping machine, we absolutely can provide you a good machine to reuse your waste stone slabs, and save your money.
Our hydraulic slab stamping machine is specially designed for processing the waste or leftover slabs or tiles into different shapes with difference moulds (designed patterns), providing to the builders for plaza, street, villa and living areas.


Advantage:
1.This machine is for changing the waste slabs into valued paving tiles, which is save the stone materials and protect the environment.
2.This machine have very compact structure, it is easily operated and maintained.
3.The CP-90 machine have the output around 80m²~100m² per day, certainly, if the operators have very good experience and skill, the yield will be much more.
4.This hydraulic stamping machine has 3 in 1 functions. Three functions for your choice: pressing(stamping), splitting and cutting.
5.It can stamp / Press the stone tiles thickness from 1cm up to 8cm of more than 40 designs figure brick. with the same machine.
6.It also can separate the stone brick or bar into natural face for decorating wall stone or round fire pit cladding.
7.It can stamp / Press the stone tiles thickness from 1cm up to 8cm of more than 40 designs figure brick. with the same machine.
Technical Data:
We can provide 2 types of this machine, they differ in the stamping power. One is 20T, the other is 40T.
They can process different slab size, one is 30cm*30cm*5cm, the other is 30*30*8cm.

Model	CP90-20T	CP90-40T	CP90SA	CP90FA
Hydraulic pressure (Mpa)	20	20	20	20
Splitting power (T)	20	40	40	40
Electric motor power (kw )	3.7	5.5	5.5	9
Max.slab stamping size (cm)	30*30*3	30*30*5	30*30*5	30*30*5
Max splitting length (cm)	30	35	Semi-automatic	Fully-automatic
Slab thickness (cm)	1-3	1-5	1-5	1-5
Machine size (cm)	80*100*150	80*100*150	80*100*150	230*95*185
Weight (kg)	500	580	650	1500
Fuctions	stamping,cutting, splitting	stamping,cutting, splitting	stamping	stamping,air consumption 1m3/min.

---
