XTIOT XT8001D China AndroID 14.0 PDA Portable Bluetooth Wireless Barcode Scanner With Memory

Product Description

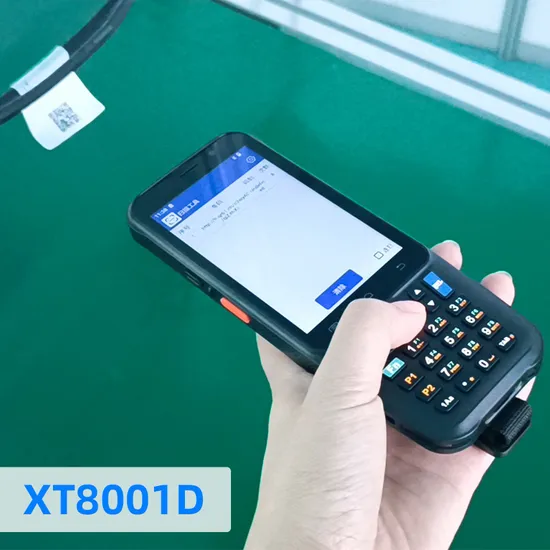

XTIOT XT8001D China AndroID 14.0 PDA Portable Bluetooth Wireless Barcode Scanner With Memory Detailed Photos
Product Parameters

XTIOT XT8001D Android Data Collector PDA Specification
System Parameter
Operating System						Android 14.0
Processor						8-core CPU
Memory						Standard: 3G+32G Optional: 4G+64G
Expanding Memory						MicroSD card, can support up to 256G
Expansion Slot						Nano-SIMx1, MicroSDx1, optional eSIMx1
Display Screen						4 - inch IPS high - definition screen, resolution 480 * 800
Touch Screen						Supports multi - point touch with capacitive pen
Camera						5 - megapixel front - facing (optional), 5 - megapixel rear - facing (standard), 13 - megapixel rear - facing (optional), with flash and auto - focus function
Indicator Light						Charging indicator light
Keyboard						Numeric keypad / function keys / scan keys / direction keys
Flashlight						Low - power LED light for illumination, for emergency use
Battery Capacity						5050mAh lithium - polymer battery
Charging Time						No more than 4 hours
Working Time						More than 12 hours (when fully charged once)
Standby Time						Can stand by for 360 hours when wireless communication and other functions are turned off
Barcode Reading						1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,Code 11,Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI- Plessey, etc.
						2D: PDF417, Data Matrix, QR, Micro QR
Communication Interface						Type - c data interface
NFC Function
Protocol Standards						ISO14443A / B, ISO15693, NFC - IP1, NFC - IP2, etc.
Tag Standards						M1 card (S50, S70), CPU card, NFC tag, etc.
Distance						Reading and writing distance: 3cm - 5cm
Communication Parameters
Communication						4G, 3G, 2G full network
WIFI						2.4 G / 5 G dual-band, IEEE802.11a/b/g/n/ac
Bluetooth						BT5.1
GPS						GPS + Beidou dual - navigation system with an error range of ±5m
Environmental Parameters
Operating Temperature						-20ºC ~ +50ºC
Storage Temperature						-20ºC ~ +70ºC
Humidity						5%~ 95% (no condensation)
IP Degree						Host IP67
Appearance Parameter
Appearance Parameter						Size: 166mm*66mm*18.7±2mm Weight: 288g
Minimum Package						Size: 190mm*135mm*85mm Weight: 480g
List of Accessories
Standard Accessories						XT8001D*1, Adapter *1, Type-C cable *1, Lithium Rechargeable Battery *1

Our Advantages
Company Profile
Packaging & Shipping
After Sales Service
FAQ
Q1: What' the communication port?
A1: Default is USB, RS232 and TTL is for optional.
Under USB port, there are USB-keyboard, and USB-virtual serial port.

Q2: What kind of barcode can the scanner read?
A2: 1D and 2D barcode.
1D barcode including EAN-8, EAN-13, Code 128, UPC-A, UPC-E, Code 39, Code 93, Matrix 2 of 5, Standard 2 of 5, Industrial 2 of 5, Codabar, MSI Plessey, Plessey, GS1 DataBar, ISBN, ISSN, ISBT 128, etc.
2D barcode including QR code, PDF417, Micro QR code, Datamatrix, etc.

Q3: What's the size?
A3: We can send the 2D drawing and 3D file of the scanner, which contain all dimensions of the scanner.

Q4: What's the baud rate?
A4: Default baud rate is 9600. You can set the baud rate by using user manual, baud rate from 9600 ~ 115200 (Max).

Q5: Can I add prefix and suffix?
A5: Yes, support adding 10 characters prefix/suffix.

Q6: Can I use the scanner at outdoor?
A6: It can work under sunlight, but it's not waterproof, to use the scanner at outdoor, you will need to add a cover for the scanner to protect it in rainy days.

Q7: Can the scanner work in high temperature environment?
A7: The working temperature is -20ºC ~ 60ºC.

Q8: Is there LED lights?
A8: Yes, there are 4 LED lights.

Q9: Can you customize the cable?
A9: We provide custom service for cable length, cable PIN assignments, etc.

Q10: Do you have product certificates?
A10: Product has CE, ROHS, FCC certificates.

---
