CE Approved Metal Sumore China Small Slant Bed Machining CNC Lathe with Factory Price

Product Description

Product Description

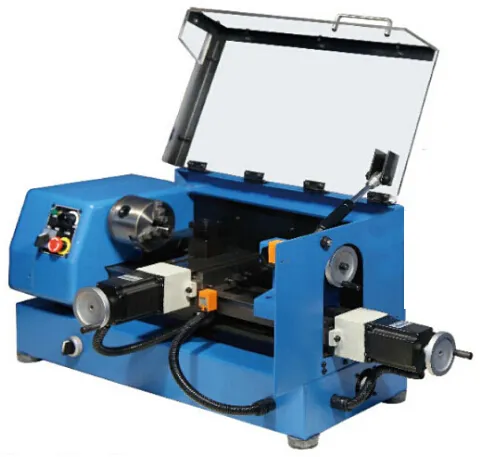

SP2138 mini automatic cnc lathe machine price is new cnc lathe machine, this light industrial cnc lathe machine is for job work, it's quite competitive in the market. It is made in China but has similar quality as made in Taiwan cnc lathe, but it has the same quality as made in German cnc lathe machine.
Quick detais
1.Swing over bed:140mm
2.Work piece:250mm
3.Spindle bore:10mm/56mm/62mm
4.Tool stange:2 ways
5.Control system:Mach3
6.Power:150W
Features
1. Engineers from high grade castings.
2. The lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3. Induction hardened bed.
4. The cutting tools carrier is equipped with 4-station tool holder.
5. All machines have to pass the check list of the machine precision before shipment
6.The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
7. Electric turret installed.
8. Fully enclosed protective cover.
Product Parameters

Model	SP2138
Swing over Bed	140 mm
Swing over Carriage	75 mm
Distance Between Centers	250 mm
Maximum Travel on X Axis	100 mm
Motor Torque of X Axis	1.35 N·m
Maximum Travel on Z Axis	150 mm
Motor Torque of Z Axis	1.35 N·m
Spindle Bore	10 mm
Spindle Taper	MT2
Spindle Speed	100 - 2,000 rpm
Tailstock Taper	MT1
Tool Post Position	2
Motor Power	150 w
Voltage and Frequency	Customerized
Overall Dimensions (LxWxH)	730 x 380 x 350 mm
Packing Size (LxWxH)	830 x 480 x 450 mm
Net Weight	45 kg
Gross Weight	60 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
