Custom Made Roll Grooving Machine Wholesaler Roll Grooving Machine Price

Product Description

Product Description
*Model RG-3 Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and Stainless Steel. from 2"-8" (DN50~DN200) SCH10 / SCH40.*The lightweight and compact design of this product is a cost-effective solution that can help save money on grooving tools.*With its efficient and portable design, it provides a convenient alternative to bulky and expensive machinery. This makes it an ideal choice for light weight and compact design.*Inbuilt high-performace gear reducing motor contributes compact size and low noise.*Our innovative split-type hydraulic system is designed to prevent oil tank leakage and increase the overall lifespan of the machine. Additionally, our groove depth lock knob ensures the highest quality grooves and maximum efficiency.
PARAMATE

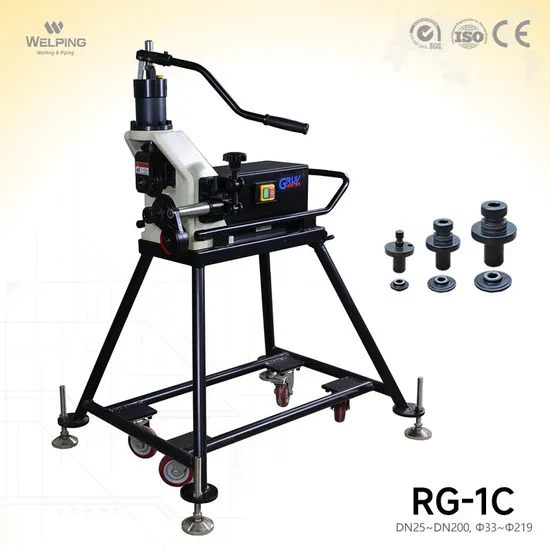

Model	RG-1C
Suitable materials	Carbon Steel,Stainless Steel
Capacity	for 1"-8" steel pipe SCH10/SCH40
Power supply	220V/110V
Frequency	50HZ /60HZ
Max wall thickness	8mm
Motor power	800W
Output speed	23RPM
Packing gross weight	85kgs
Packing size	73*40*77cm

Drive Unit

Catalog Number	Phase	Power	Voltage/Frequency
900010	Single	800W	220V,50/60HZ
900011	Single	800W	110V,50/60HZ

STANDARD PARTS

Item Number	Description		Net weight
911042	Drive roller 1"-1/2" (φ33~φ48)		1.10kg
911043	Drive roller 2" - 6" (φ60~φ168)		1.30kg
911044	Drive roller 8" (φ219)		1.40kg
912011	Groove roller 1"-11/2" (φ33~φ48)		0.40kg
912012	Groove roller 2"-6" (φ60~φ168)		0.45kg

912013	Groove roller 8" (φ219)	0.45kg
998078	Pipe stand for 1" - 8" (φ33~φ219)	6.90kg

Optional Parts

Item Number	Description		Net weight
998026	Foot switch		1.50kg

Detailed Images
Product Specifaications Fine Structured parts
All for qualified performance
Pipe Stand
1"-8" (Φ33-Φ219)
Foot switch
Drive Roller
One Set 1"-11/2" (Φ33-Φ48)
One Set 2"- 6"(Φ60-Φ168)
One Set 8" (Φ219)
Groove Roller
One Set 1"-11/2" (Φ33-Φ48)
One Set 2"- 6"(Φ60-Φ168)
One Set 8" (Φ219)
Pipe Stabilizer
Protect the pipe from moving
Product Packing
Company Introduction About Welping
To help customers succeed in the field of plastic pipe jointing, WELPING had been focusing on thermoplastic welding equipment developing, manufacturing and selling since 2005. We aim to bring industrial level design, performance and quality together, to help you build reputation.
To suit different welding applications and market requirements, we are offering differentlevel items represented by brand WELPING,YOVIDA, VOLKIR. Brand WELPING enjoys a high reputation for exportation, benefiting from the steady product quality andperformance. Thanks to our experienced engineers, WELPING can help you to quickly decide OEM and ODM reguirements. At the same time, we are improving and updating products line to better suit field requirements.
WELPING knows the importance of fast delivery for our customers. To better shorten poroduction lead time. we consolidate critical production procedures into selfmanagement, like aluminum die casting, laser cutting, metal fabrication, CNC machining, powder coating etc.Standard items and light-OEM items, WELPING can finish in around 10-15 days.
