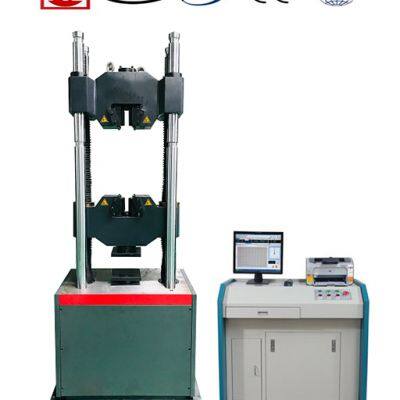

Product Description
Product Description
Machine Features:
1. Load measurement: adopting load cell to ensure high accuracy, reliability and consistency;
Load meets or exceeds the following standards: ASTM E4, ISO75000-1, EN 10002-2, BS1610, DIN 51221.
2. Displacement measurement: adopts optical encoder with high accuracy and stability;
3. Strain measurement: Adopt high accuracy electronic extensometer: Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, EN 3846 and EN 1002-4.
4. Compact structure: with dual testing spaces and easy to adjust testing space to carry out different test of varying-length specimens; The machine has four column and two screw with strong stiffness;
5. Clamp automatically: uses hydraulic grips with reliable holding;
6. Multi-protection: protection of over-load by software and hardware; position-limited protection of piston and lower crosshead;
7. Test report can be acquired according to requirements of customers;
8. Management of test data: uses Access, Excel and other such kind software to communicate with testing data base;
9. Stable performance with little influence of temperature and voltage;
10. Multiple Servo control mode：Load (Stress) Control; Displacement (Stroke) Control, Strain (Deformation) Control. Load keeping, Displacement Keeping, Customized programming Control, etc
Main specifications:
Model
Specifications
| WAW-500E
| WAW-600E
| WAW-1000E
| WAW-2000E
|
Max. Testing Load (kN)
| 500
| 600
| 1000
| 2000
|
Load resolution
| 1/200000
|
Load Accuracy
| ≤±1% from 2% to 100% of full scale
|
Displacement Accuracy
| ≤±0.5%
|
Displacement resolution
| 0.001mm
|
Strain accuracy
| ≤±0.5%
|
Strain resolution
| 0.0001mm
|
Control Mode
| Servo Control
|
Load frame Type
| 4-column and 2-screw structure
|
Stress rate range
| 1—60（N/mm2）S-1
|
Strain rate range
| 0.00025/S—0.0025/S
|
Max. tensile space (Including piston Travel) mm
| 750
| 750
| 750
| 1000
|
Max. Compression space (mm)
| 620
| 620
| 620
| 850
|
Round specimen grip (mm)
| Ф13-40
| Ф13-40
| Ф13-60
| Ф13--80
|
Flat Sample Clipping Thickness (mm)
| 0-15
| 0-15
| 0-30
| 10-50
|
Ram stroke (mm)
| 250
| 250
| 250
| 250
|
Max. Distance Between Two Fulcrums of Bending Test (mm)
| 600
| 600
| 600
| 720
|
Lifting Speed of Mobile Beams (mm/min)
| >200
|
Distance Between Two Column (mm)
| 435
| 500
| 565
| 580
|
Dimensions of the Machine (mm)
| Load Frame
| 120×560×1940
| 770×600×2130
| 900×660×2380
| 1300×900×3220
|
Hydraulic power pack
| 1050×770×1280
| 1050×770×1280
| 1050×770×1280
| 1050×770×1280
|
Approx. Weight (KG)
| 1860
| 1860
| 3000
| 7500
|
>>
