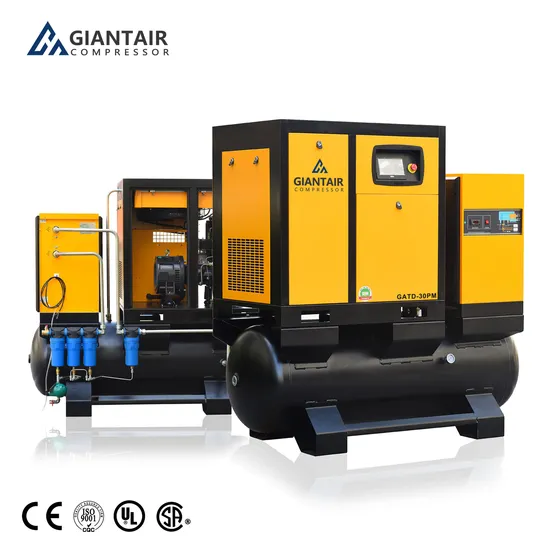

11kw 15HP All in One Smart Silent Combination Air Compressor Industrial Electric Rotary Screw Compressors

Product Description

Product Description
Product Parameters

ALL IN ONE SCREW AIR COMPRESSOR ( 8 - 10 BAR )
MODEL	MAXIMUM WORKING PRESSURE		FREE AIR DELIVERY* OF UNIT AT WORKING PRESSURE			MOTOR		TANK	NOISE LEVEL**	AIR OUTLET DISCHARGE SIZE	WEIGHT	DIMENSIONS
	Bar	PSI	l/s	m3/min	CFM	kW	HP	L	dBA		KG	L X W X H (mm)
GATD-10PM	8	116	18	1.10	39	7.5	10	300	65±2	G3/4	380	1710*730*1590
	10	145	15	0.90	32
GATD-15PM	8	116	28	1.70	61	11	15	400	65±2	G3/4	520	1710*810*1720
	10	145	27	1.60	57
GATD-20PM	8	116	38	2.30	82	15	20	400	66±2	G3/4	530	1710*810*1720
	10	145	33	2.00	71
GATD-30PM	8	116	57	3.40	121	22	30	500	66±2	G1	650	1900*970*1840
	10	145	53	3.20	114
** Noise level operation at maximum operating pressure and maximum speed. Tested per ISO 2151 and the basic standard ISO 9614-2.
Specifications are subject to change without notice.

ALL IN ONE SCREW AIR COMPRESSOR FOR FIBER LASER CUTTING APPLICATION ( 16 - 20 BAR )
MODEL	MAXIMUM WORKING PRESSURE		FREE AIR DELIVERY* OF UNIT AT WORKING PRESSURE			MOTOR		TANK	NOISE LEVEL**	AIR OUTLET DISCHARGE SIZE	WEIGHT	DIMENSIONS
	Bar	PSI	l/s	m3/min	CFM	kw	HP	L	dBA		KG	L X W X H (mm)
GATD-20PM/16	16	232	20	1.20	43	15	20	400	64±2	G3/4	550	1710*810*1720
GATD-30PM/16	16	232	33	2.00	71	22	30	500	66±2	G3/4	650	1900*970*1840
GATD-20PM/20	20	290	17	1.00	36	15	20	400	64±2	G3/4	550	1710*810*1720
GATD-30PM/20	20	290	32	1.90	68	22	30	500	66±2	G3/4	650	1900*970*1840
*FAD (Free Air Delivery) is full package performance including all losses. Absolute intake pressure 1 bar (a), cooling and air intake temperature 20°C. Tested per ISO 1217: 2009 Annex C.
** Noise level operation at maximum operating pressure and maximum speed. Tested per ISO 2151 and the basic standard ISO 9614-2.
Specifications are subject to change without notice.

Detailed Photos
Company Profile
Certifications
FAQ
Q1: Are you factory or Trade Company?
A1: We are factory of NanCheng, Jiangxi. We have our own trade company for export.
Q2:Warranty terms of your machine?
A2: 18 months warranty for the machine,technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A3: Yes.We provide spare parts for daily maintenance.
Q4: What voltage can you provide?
A4: We can support 220V/380V/400V/415V/440V/480V/570V/600V 50HZ/60HZ
Q5: How long will you take to arrange production?
A5: Deliver standard goods within 3-5days, Other customized goods need to be decided.
Q6: How to pay?
A6: We support T/T or LC/Western Union/Money Gram.

---
