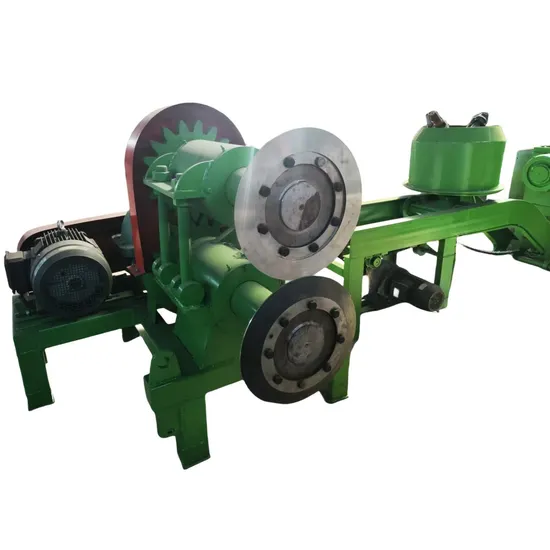

Automatic Tire Recycling Machine Horizontal Used Tire Sidewall Cutter

Product Description

Automatic Tire Recycling Machine Horizontal Used Tire Sidewall Cutter
Product Description
Application:
This machine can cut off the tire beads on both sides of the tire at the same tim
Technical specification:

Motor Reducer And Frame	Model	TP-420
	Rotation speed(R/Min)	32
	Motor(kw)	11KW- 4 grade
	Motor model	Y2 National Standard for all copper
	Reducer model	JZQ400
	Frame	Welded square tube
Axle	Axial length(mm)	1000/1040
	Spindle material	45#
	Spindle diameter(mm)	140
	Gear	2pcs
Circular blade	Diameter	420mm x 2
	Material	Cr12MoV
Bearing	Model	7526
Connect	Host connection method	Using nylon rod coupling for connection
Feed	Motor model	1.5kw Cycloid needle motor

STRIP CUTTER
Application:
It is utilized in cutting the tire crown and side wall of waste tire into rubber strip.
Introduction:
Stable performance and excellent quality,two disc cutter adopts special metal heat treatment, can be used repeatedly grinding
Features:
The materials of disc knife is a special metal heat treatment, so the knife is high hard, wearable and durable.
LUMP CUTTERApplication: It is used together with strip cutter to cut long rubber strip into rubber lump of 30-50mm.
Introduction: Stable performance and excellent quality, cutting tools with carbide, hard and durable, can be used repeatedly grinding.
Features: The cutter materials are excellent hard alloy steel, high hard and wearable.TIRE BEAD RING CUTTERApplication:
The first procedure is to cut the tire sidewall and tread separately for next processing.
Introduction:
The waste tires placed on the disk platform, rotate the intermediate hand wheel, four claws card holder will be locked the inner tire, turn on the power, work platform rotates, cutting tools control the cutting speed according to detailed requirement, slowly cut into the tires, step by step, until cut the tire side.
Features:
Cutting tools with carbide, hard and durable, can be used repeatedly grinding.Packaging & Shipping
