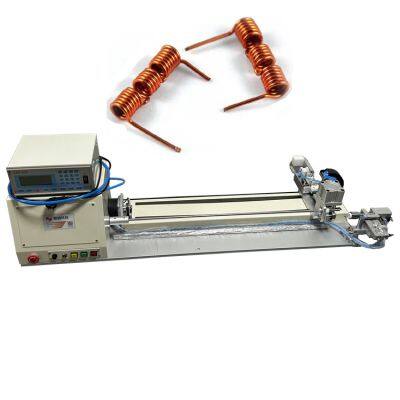

HY-R12 Enameled copper wire CNC automatic spring machine

Product Details

Product Description

Product Description
Automatic spring winding machine
Product Description
HY-R12 Enameled copper wire CNC automatic spring machine
Product features:
1. CNC intelligent operating system screen making, intuitive and convenient for viewing and operation.
2. The wire feeding mechanism is made of rust proof material, and the winding diameter can be adjusted according to needs, with good accuracy.
3. The winding and tying of wires are driven by stepper motors and dual motors to accelerate work efficiency.
4. The tangent position mechanism adopts imported steel materials and automatically ties and twists wires for tangent cutting; Durable and long-lasting.
5. The equipment is versatile and can automatically wind, tie, and twist wires; Set the number of coils and the length of the tie wire arbitrarily.
Adopting CNC microcomputer controller, the data is easy to set; Equipped with a foot pedal, easy to operate.
The cable shaft adopts a stepper motor driven by a constant current circuit, with fast cable laying speed and high accuracy.
The starting point, width, and wire diameter can all be adjusted.
Can store 999 sets of sequential data and permanently store memory.
Optional models: 500mm stroke, 800mm stroke, 1000mm stroke
Machine Function Introduction:
The automatic spring winding machine is mainly used for winding spring shaped wires, heating wires, nickel chromium alloy wires, copper wires, and so on; Suitable for winding inductance coils, enameled aluminum wires, soldering wires, wires and cables, spinning threads, etc. for electronic and electrical products
Mainly used in conjunction with a magnetic ring needle hook machine, it is wound into a spring shape, and the magnetic ring hook thread is easy and fast to thread; High winding efficiency

Applicable diameter	0.3-2.5 mm
Spindle motor	DC brushless 600W
Number of spools	1
Spring inner diameter range	6-15mm (customizable)
Cable stroke	0-500mm
Pressure range	0.4-0.6Mpa
Maximum winding diameter	150mm
Machine speed	0-2000RPM
Machine Size (mm)	L1500 * W650 * H500
Machine weight	65kg

---
