rubber & Plastic ozone aging test chamber

Product Description

Product Description

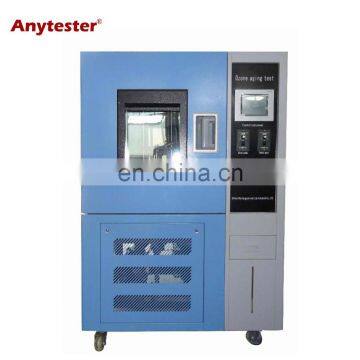

ApplicationHY3720A/B Ozone Test Chamber is used to estimate the resistance of vulcanized or thermoplastic rubbers to cracking when exposed, under static or dynamic tensile strain, to air containing a definite concentration of ozone and at a definite temperature in circumstances that exclude the effects of direct light. This machine conforms to ISO 1431, GB/T 7762, etc. SpecificationMOdelHY3720AHY3720BTypeFor Static tensile testFor dynamic tensile testDimensions of working chamber 500×500×600mm (D×W×H)Ozone concentration 10~1000pphmOzone concentration deviation≤10%Temperature range RT+10℃~+50℃Temperature fluctuation±0.5℃Temperature uniformity ±2℃Timing range 0~999hRotating speed of specimen rack1~17r/min adjustable Air flow 2~25L/minPower supply AC380V 50Hz

---
