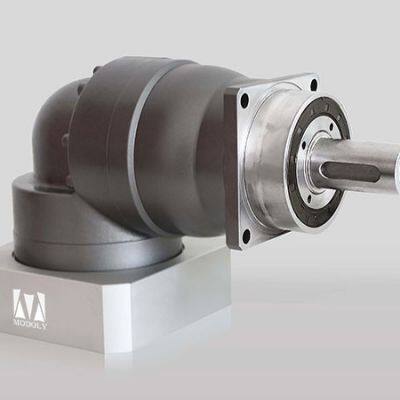

MVDR Series MVDR 60 planetary reducer gearbox

Product Details

Product Description

Product Description
Performance Highlights:
Torque Range: 60-90Nm (Max) / 30-45Nm (Rated)
High-Speed Operation: 6000 rpm (Max) / 3000 rpm (Rated)
Exceptional Load Capacity: 2700N Axial / 3000N Radial Force
Premium Efficiency: 90% Energy Conversion
Detailed Specifications:
Torque Performance
Maximum Torque: 60-90Nm
Rated Output Torque: 30-45Nm
Emergency Braking Torque: 110Nm
Operational Parameters
Speed Range: 3000-6000 rpm
Moment of Inertia: 0.13 kg·cm²
System Weight: 5.2 kg
Durability Features
IP65 Protection Rating (Dustproof/Water Resistant)
Lifetime Lubrication System
Operating Temperature: -15°C to +45°C
Environmental Specifications
Noise Level: ≤60 dB(A)
Standard Color: Industrial Gray
Engineering Advantages:
✓ Optimized for high-torque applications
✓ Maintenance-free lifetime lubrication
✓ Robust construction for heavy-duty use
✓ Compact design with high power density

---
