Mkbd High Quality Industrial Bundle Dryer

Product Description

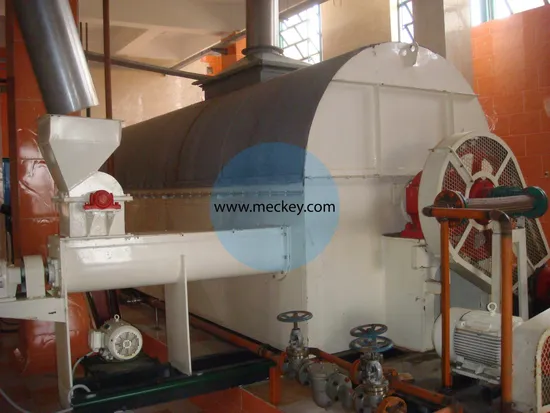

MKBD Bundle dryer
MKBD series pipe bundle dryer is a kind of indirect heating dryer, it can work in countercurrent way or forwards current way. It is widely used in chemical industry, light industry, food industry and feed industry.
It is specially designed for processing some loose non-sticky material such as corn germ, fiber, corn gluten in starch industry, DDGS in ethanol industry, some fertilizer powder and inorganic mineral material, offal of fish and shrimp, chemical product powder, pot or lees in alcohol industry.
MKBD series pipe bundle dryer absorbs foreign advanced technology, and has its own advantage:
1. Low energy consumption
2. Higher capacity
3. Bigger operating flexibility
4. Clean operation environment
5. Low noise
6. Small installation area
Characteristic and technical index of material

Material	Input moisture (%)	Output moisture (%)	Drying capacity (water evaporation kg/m2·h)
Corn germ	55	3-5	2.5-3
Corn fiber	60	10-12	4-4.8
Corn gluten meal	38-40	10-12	3-4.7
Potato fiber	65	10-12	3.5-4.8
Vinasse	65	10-12	3.2-4.9
Feed carrier	16	6-8	3-4.2
Rapeseeds	60	5-7	3-4.5
Fermentative feed	40	10	2.5-4
Bone meal	40	10	2.5-3

Technical parameters of bundle dryer

Model	Heat exchange area (m2)	Power (kW)	Dimension (mm)
MKBD-100	100	7.5	7400*1852*2600
MKBD-180	180	11	8500*1952*2700
MKBD-200	200	15	8500*2192*3000
MKBD-250	250	18.5	8500*2452*3200
MKBD-300	300	22	8900*2452*3200
MKBD-350	350	22	9700*2600*3300
MKBD-400	400	30	9800*2912*3750
MKBD-500	500	37	10880*2912*3750
MKBD-600	600	45	11500*3012*3850
MKBD-700	700	55	12050*3212*4100
MKBD-800	800	75	12300*3500*4500
MKBD-900	900	90	12400*3500*4600
MKBD-1000	1000	110	12600*3500*4700
MKBD-1200	1200	132	13300*3820*5000

---
