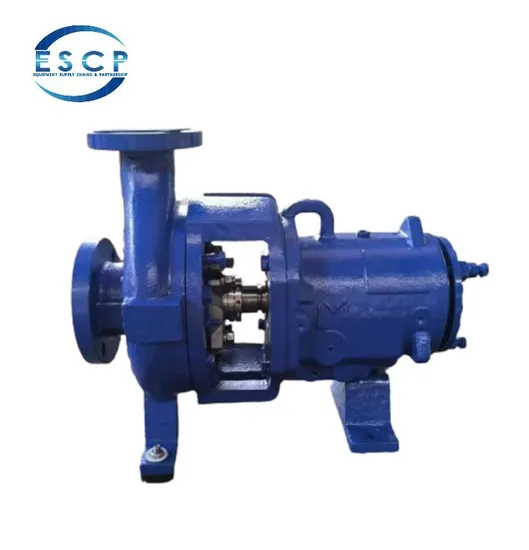

Goulds Replacement High Pressure Pulp Industrial Centrifugal Chemical Oil Gas Water 3393 3175 3180 3196 3185 Pump

Product Description

Product Description Replacements for Sulzer AhlstromReplacements for Sulzer API 610 standard pumpsReplacements for Goulds 3196 3175 3180 3393, IC .., Replacements for AndrtizReplacements for LEWA
Replacements for FlowserveReplacements for Hermetic etc
API685 Magenetic Pump and Pump PartsOEM/ODM casting parts, Stainless steel, carbon steel, low alloy steel, medium alloy steel, high-manganese steel, nickel-based alloy, etc.High precision CNC processing service.

Product name	Impeller, Balance drum,Balance drum liner,Bearing Bracket,Diaphragm,Wear ring,Threaded Flange,Shaft Sleeve,Shaft,Spacer Sleeve,Mechanical Seal,Coupling for Article,Bearing Bush,Stuffing Box,Adapter,Back Cover Plate,Pump casing, Casing cover, Side plate, Bearing cover,Bare shaft pump
Material	ANSI, ASTM, SAE, UNS, DIN, EN, ISO, TOCT Cast iron, Wear-resistant cast iron, Cast steel, Stainless steel, Duplex SS, Cast alloy steel
Mould and Casting	Investment Casting: Wax injection, Clusters assembly, Coating & Sanding, Dewaxing, Casting, Post cleaning, Heat treatment, Inspection Investment casting mould, Sand casting mould
Process	CNC machining, Auto lathe machining, Meter lathe machining, Wire cutting, EDM cutting, Gringding, Milling, Drilling, Screwing, Cutting, Stamping
Surface treatment	Polishing, Anodize, Blacking, Chrome plating, Zinc plating, Nickel plating or other as requirements
Inspection	Balancing testing, Material certificate, Hydrostatic testing, Impeller static & dynamic Non-destructive testing(PT/ RT/ UT/ MT), 3D coordinator, Hardness tester, Roughness tester
Packing	1. Small part,single packed then put into paper carton 2. Wooden crates suitable for shipping on the sea 3. We also consider customers' special needs for packing
Delivery	30days after receiving the deposit.
Payment	30%TT in advance ,70% balance is paid before shipping.
Mode of transport	1. Express 2. Sea freight 3. Air shipping 4. Land transport 5. Post

High Pressure, Multistage Ring Section Pump
General
• Radially split, segmented casing, multistage pump
• Modular interstage components
• Radial and end suction configuration
• Materials: 12% chrome, duplex and super duplex
stainless steels
• High efficiency
Pressure and Temperature Limits
• All: 350°F
• Top (ES) or top-top (RS) arrangement must be used
for temperatures over 250°F
• All: 350 psig suction pressure
• Duplex/super duplex: 1480 psig discharge pressure
• 12% chrome: 1687 psig discharge pressure
Suction and Discharge Casings
• Flanges raised face per ANSI/ISO or EN/DIN
specifications
• Radial and end suction available for suction casing
• Product lubricated silicon carbide sleeve bearing for
end suction pump
• Dual volute type discharge casing
• Radial suction and discharge casing nozzles
positioned in 90° increments.
• Casing wear rings standard
Interstage Casings
• Rigid, heavy duty parts
• One piece combined continuous channel mulitvane
diffuser and stage piece
• Casing wear rings standard
Impellers
• Enclosed type
• Precision investment cast
• Keyed to the shaft
• Dynamically balanced
• Two impeller designs (min) for each pump size
• Optional impeller wear rings
Shafts
• Impeller keyways staggered for better balance
Balancing Device
• Involute balance drum for axial thrust balance
• Dual step surface for closer running clearance
• Accessible and removable from the discharge side of
the pump
Instrumentation
• Bearing frames pre-machined for temperature and
vibration sensors
• standard
Seals and seal systems
• Single and double cartridge mechanical seals
• Standard seal flush plan modified plan 11/13
• Seal chamber accepts a mechanical seal with
pumping ring
• Plan 11, 23 as options
Bearing housings
• Radial suction pump bearing housings identical on
suction and discharge ends
• Inpro VBXX-DTM labyrinth seals are standard
• Bearing housings are finned and fanned for
additional cooling
Bearings
• End suction sleeve bearing supported in the suction
casing
• Heavy duty anti-friction bearings in bearing housings
• Oil lubricated anti-friction bearings
Couplings
• Disc type spacer coupling standard
Coupling guards
• Standard
• Comply with OSHA and EN requirements
Shaft guards
• 304SS expanded metal shaft guards cover bearing
housing openings
Baseplates
• Rigid fabricated steel design
• Reduced vibration
• Assured positive alignment
Drivers
• Electric motor
• Steam turbine
• Diesel engine
• Speed increasing or reducing gears Product Description Replacements for Sulzer Ahlstrom
Replacements for Sulzer API 610 standard pumps
Replacements for Goulds 3196 3175 3180 3393, IC ..,
Replacements for Andrtiz
Replacements for LEWA
Replacements for Hermetic etc
OEM/ODM casting parts, Stainless steel, carbon steel, low alloy steel, medium alloy steel, high-manganese steel, nickel-based alloy, etc.
High precision CNC processing service.
Detailed Photos

Packaging & Shipping

Company Profile ESCP have established a premium pump & parts resources platform for four main business range:
1 First part is for Pump overhaul,rebuild and repairs,The pump Brand we can service as follow:
•SULZER •SULZER AHLSTROM •ANDRITZ •ITT GOULDS •LEWA
•WARMNA •Gorman Rupp •HERMETIC •K S B •FLOWSERVE
2 Second part is for retrofit OEM pumps & spares:
•APP/APT
•Durco Mark Ill
•CZ/ZE/Z F/ZA/ZAO
•ACP/AD/CP/VP/S
•3196/3175/3180/5500/3393/3700/IC/JC
•LEWA
•WCPK/CPK
•T2/3/4/5/6/810
3 Third part is for casting pump OEM service:
•Available material:
•Martensitic cast steels:ASTM A743 CA-6NM,ASTM A747CB7Cu-2(H900)
•Austenitic cast steels:ASTM A743 Grade CF-8,ASTM A743 Grade CF-8M,ASTM A351CF-3M,EN 102831.4584,
•ASTM A743 Grade CN-7M,Alloy 31,654SMO
•Duplex steels(austeniticferritic):ASTM A890 Grade 3A,ASTM A890 Grade 1B
•Super duplex steels:ASTM A890 Grade 5A
•Ferritic stainless steel:AsIM A/43 CC50
•Carbon steels:ASTM A216 Grade WCB
•Grey cast irons:ASTM A48 Class No 35 B
•Ductile cast irons:ASTM A395 Grade 60-40-18
•Wear and corrosion resistant cast irons:ASTM A532 Ill A level 1,ASTM A532 Il A level 2,CB3,30Cr/Mo,
•38Cr/5Ni/2Mo/1Cu
•Titanium:ASTM B367 C-3
•Nickel alloys:ASTM A494 Grade CW-6M
4 Four part is Quality assurance for material and its properties:
Our Advantages
FAQ 1.As a trade company why do you have ability to provide one-stop pump service?
We have selected and merged all OEM pump factories sources which have brand pump's background to establish one-stop solution for OEM pump replacement parts, 3196 / 3175 / 3180 / IC /5500 / 3393, APP, Durco Mark III etc.
2. Do you manufacture high material pump parts?
We can fabricate high material super duplex steel, Nickel, Zirconium, Hastelloy C titanium etc. We have manufactured many casings, impellers, cover plates, and sleeves. Please contact us to discuss your specific requirements.
3. What information do you need to get a quote?
Please provide us with model type and the OEM part number. If you don't have that information, no problem, But please send a details images of parts, We'll do the rest.
4. Do you carry discontinued parts?
We don't carry discontinued parts but may be able to reverse engineer them. Contact us to find out how we take old, worn down parts and make new replacements.
5. Do you have repair requirement for pump? Are you Looking for sourcing some pump parts?
Sulzer, Goulds, Andritz, Flowserve, Teikoku, Hermetic, LEO, We can service all these pump, repair and rebuild it. We are dedicated in refurbishing end suction , double suction, vertical, submersible, gear, displacement and multi- stage pump, When a retrofit parts are required, Our one-stop pump resources will provide a cost-effective alternative & retrofit.

---
