14-16 Grills Feeder Pan Automatic Broiler Feeding Line System

Product Description

14-16 Grills Feeder Pan Automatic Broiler Feeding Line System
This system deliver feed automatically through motor under the control of feed sensor, which ensure birds feeding during whole growing period.

Consists	Item Name	Specifications	Remarks
sub feed bin(with accessories), drive system, sensor, four holes hot galvanized pipe, feed pan, winch handle, manual lifter winch, auger	sub feed bin(with accessories)	70/90kg	1.Special purpose high quality drive motor; 2.World advanced concept designed feeding pan;
	drive system	top quality motor,0.75/1.1kW
	sensor	world top class products
	four holes hot galvanized pipe	3m/set
	feed pan	with feed limit leaf
	winch handle	GR products
	manual lifter winch	GR products
	auger	world top class products

Performance parameters of feeding line system
(1) High-quality professional driving reduction motor.
(2) V-shaped Bin(with hopper)

No.	Name	Specification
1	Bin Volume	115L
2	Hopper Volume	38L
3	Material	Hot-dip galvanized sheet

(3) Feeding system:

No.	Name	Specification
1	Diameter of conveying pipe	45mm
2	Material	hot-dip galvanized sheet pipe with the zinc coating amount of more than 275g per square meter .
3	Helical spring auger	Imported from South Africa
4	feeding capacity	450kg/h
5	Feed level sensor	From Israel, time delay range 0 to 2 hours

Chicken Feed hopper advantages:
Reduce labour intensity.One person is enough for one house.

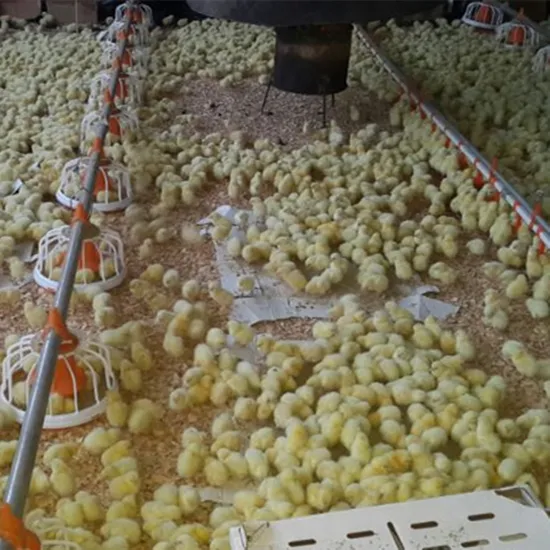

Feed line:
this system can deliver feed automatically by feed sensor to control drive motor on-off.
Feeder Pan Characteristic:

No.	Feeder Pan Characteristic
1	The pan is used on automatic pan feeding system.
2	There are 14-16 grills; fan feed 40-55 chicken per pan.
3	V shape corrugated bottom reduces stock of feedstuff ,thus making the chicks eat fresh food and can prevent the chicks from lying in the pan to eat or rest.
4	The bottom and body can be separate freely, so it's very convenient to clean.
5	There are 6 grades to adjust feed level, and it only needs to rotate the cylinder to adust feed level.
6	We use 100% high quality raw material, it's more environmental.
7	Pan plate can be disassembled on the ground working as special pan for 0-7 day's chicks.
8	Slide shutter-off can adjust feed amount from complete open to complete close.
9	Edge of pan plate tilt towards the center which can avoid the waste of feed.
10	Smooth edge can prevent the bird craw from being hurt and make sure safety and comfort feeding.

1,Driving motor
Power:0.75kw,voltage:380V,Frequency:50HZ,three-phase alternating current
2,Conveying feed tube and auger
Material of pipe is PVC, Conveying feed tube:1400kg/h,
Minimum turning radius:1.5m
3,Sensor:0-2Hours of arbitrary delay
By hopper, transporting pipe, wring dragon, materials plate, hanging lifting devices, prevent habitat device, motor and material level sensor composition. Its main function is to put the material transporting hopper to each material plate, guarantee the chicken, and by eating material level and the material level sensor to automatic control motor transport hoist, achieve the purpose of automatic feed.
V type material box (Hopper)
Through years of validation, using standard Volum (70kg). it can satisfy paper-and-plastic-made package line and feed line while playing material, won't appear broken material conditions through years of validation, using standard volum (70kg). Can satisfy paper-and-plastic-made package line and feed line while playing material, won't appear broken material
Feeder pan
Reasonable design, satisfy the need of chickens raised, avoid feed waste, facilitate at the same time the cleaning and disinfection

Lift winch :
Ensure the whole stock line also lifting
Pulley
Nylon wheel, a small resistance and durable

Vice Hopper

Sensor:



Drive Motor:
Main Feeding Pipe




We can supply full set of poultry equipment systems.
Welcome contact us for more detailed informations.

---
