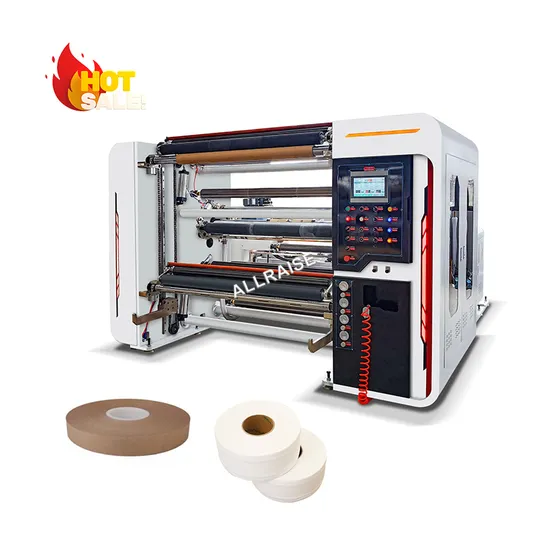

Jumbo Roll Paper Cutting Machine Kraft Paper Slitter Roll to Roll Labels Slitting and Winding Machine

Product Description

Jumbo Roll Paper Cutting Machine Kraft Paper Slitter Roll to Roll Labels Slitting And Winding MachineProduct Parameters
Main Parameters of Roll to Roll Labels Roll Slitting Machine

Product name	Roll to Roll Labels Roll Slitting Machine
material type	Kraft paper, paper\non-woven fabric, paper-plastic printing composite and other roll materials
Material thickness	20-400g
Maximum diameter of raw material	1400mm
Raw tube core	3 inches, 6 inches
raw material maximum width	1300mm
Roller surface width	1350mm
slitting width	30-1300mm
Winding core	3 inch paper tube
Maximum diameter of rewinding	1200mm
Total deviation correction stroke	150mm
Correction accuracy	±0.15mm
top speed	450m/min
Slitting speed	10---350 meters/minute
Total power of power supply	25KW
Slitting tool	According to user needs, 5 sets are standard configuration
Apply knife	Φ105*85*1.2mm, the brand adopts Anhui Maanshan
Lower round knife	Φ100*20*16mm, the brand adopts Maanshan, Anhui
Take-up shaft	Equipped with 2 3-inch air shafts

Product Description
Product Description
Kraft paper slitting machine is suitable for slitting various super large roll materials, such askraft paper, white cardboard, laminated paper, aluminum foil, PVC plastic Slitting and rewinding of coils, etc. Product Features1.Slitting and rewinding machine
is equipped with a PLC touch screen interface for intuitive operation. It incorporates three-motor vector control for precision and stability. Additionally, it features automatic taper tension control to ensure consistent tension throughout the process. The center coiling method further enhances the efficiency and accuracy of the winding process. The main machine utilizes variable frequency speed regulation, which allows for smooth acceleration while maintaining balanced operation.
2.Kraft paper slitting machine boasts automatic meter counting functionality, providing precise measurements and data tracking. It also includes alarm functions that alert operators to any potential issues or malfunctions. The winding system utilizes A and B air-expanding shaft structures, designed for ease of disassembly and installation, thus reducing maintenance time and effort.
3.To ensure smooth and accurate cutting, the unwinding mechanism of high speed film Slitting machine employs a photoelectric automatic deviation correction system. This innovative system enables the machine to cut irregular materials with precision, ensuring consistent quality and reducing waste.
4.For circular knife longitudinal cutting, gantry paper cutting machine is equipped with an automatic waste edge removal device. This device utilizes air suction and shredded paper removal techniques to efficiently collect and dispose of waste edges, keeping the workspace clean and organized.
5.Film slitting machine offers a hydraulic shaftless automatic loading system as a standard feature. This system provides convenient and efficient loading of materials. Additionally, it can be optionally equipped with a pneumatic air expansion shaft automatic loading system, offering flexibility and customization to meet specific production needs.
Detailed Photos
Product Details
Unwinding part1. The unwinding adopts hydraulic automatic lifting, magnetic powder brake and automatic tension.
2. The unwinding diameter is automatically detected by the proximity switch at the unwinding drive shaft.
3. Equipped with a mechanism to manually adjust the elastic edge of the material release
4. The correction part is pushed left and right by the motor to realize automatic correction.
5. The material discharging adopts corridor type feeding, which makes the operation easier.
6. Unwinding adopts magnetic powder brake.Traction part5KW servo motor drives the mirror traction roller.Winding mechanism1. Slitting Machine Use upper and lower double shafts to independently wind up the cut material. 2. Each of the upper and lower rewinding reels has a 7.5KW servo motor to drive the air expansion shaft. The rewinding tension is automatically controlled by PLC according to the current roll diameter, so that there is no factor of material thickness when slitting multiple strips, and the end faces of all reels are flat. The flatness of the disk surface is freely switched between pneumatic pressure rollers and self-weight pressure rollers.
Finished Products
Packaging & Shipping
Company Profile
Our Advantages
FAQ
FAQ
Don't worry your TT payment,we do make the shipment as T/C,B/L for your reference!Q: Why don't person reply to me?A: Our person is 24 hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave yourrequirements on e-mail or chat tool, we will reply you as soon as possible.Q: Can you guarantee your quality?A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principleall the time. You can be assured on our production completely.Q: How do you make your price?A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower.

---
