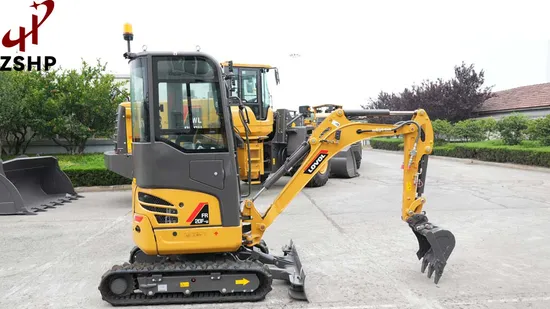

New Lovol Mini Digger 2 Ton Hydraulic Bagger Machine Household Garden Mini Crawler Excavator Fr20f with Parts

Product Description

Product Description
RELIABILITY
Powerful Engine
Original Is-uzu engine imported from Japan which is specially designed for mining applications.
Electric Control Positive Flow System
During the design stage, LOVOL has utilized latest technologies to develop an integrated hydraulic
system. The positive flow control system adjusts the displacement of pump and the motion of valve
spool simultaneously, delivering optimal operating experience for the operator with smooth and
responsive control.
Core Components
Relying on Japan Engineering Center, LOVOL has establishing solid partnership with world-renowned
enterprises and improve the quality and service life of these components. The supply of the core
components like engine, pump, valve, motor, cylinder and forth also can be priority guaranteed.


Product Parameters

Main specification		Operating weight	35800 kg
		Bucket capacity	1.7 m3
		Bucket digging force(standard)	220 kN
		Arm Digging Force	181 kN
		Max traction	289 kN
		Max. Walking Speed	5.5 km/h
		Min. Walking Speed	3.2 km/h
		Rotary Speed	9.5 r/min
		Gradeability	35°
		Ground pressure	70 kPa
Engine		Model	IS-UZU AA-6HK1XQP
		Rated Power	190.5kW/2000rpm
		Cylinder	6
		Displacement	7.79 L
		Max. Torque/Speed	872.8/1700 N.m/rpm
		Main Safety Valve Pressure	34.3 MPa
Working ranges		Max digging height	10004 mm
		Max Dumping height	7019 mm
		Max. Digging Depth	6905 mm
		Max. Digging Radius	10727 mm
		Max. Ground Digging Radius	10523 mm
		Min. Turning Radius	3692 mm
Dimensions		Transportation Dimensions(L*W*H)	11500*3205*3500 mm
		Tail swing radius	3695 mm
		Track length	4950 mm
		Ground clerance	520 mm
		Counterweight clerance	1205 mm

Detailed Photos
