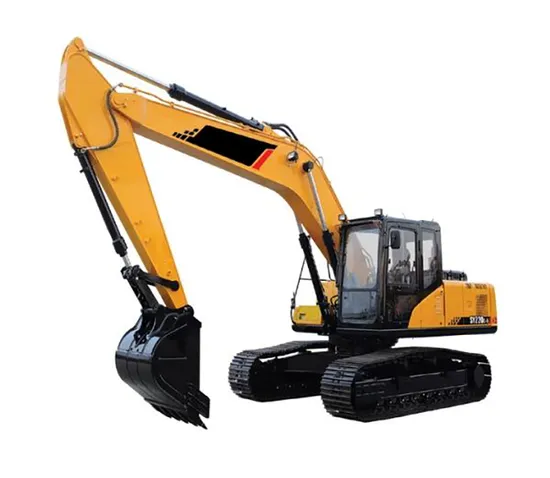

High-Quality Sy215c 21.5 Ton Crawler Hydraulic Mining Medium Excavator with Factory Price

Product Description

Detail images

Overview
High-quality SY215C 21.5 Ton Crawler Hydraulic Mining Medium Excavator with Factory PriceSY215 is a new-generation grade-21 super excavator for earthwork. It is designed for earthwork conditions and takes stonework into consideration. It targets to improve investment return of the customer. As compared with the competitor, it features "super excellent performance, super strong adaptability, super long life and super low maintenance cost" etc. Specification

Item	Parameter
Overall Dimensions
Boom Length	5,700 mm
Transport Length	9,728 mm
Transport Width	3,180 mm
Transport Height	3,370 mm
Upper Structure Width	2,710 mm
Track Width (standard shoe)	800 mm
Track Gauge	2,380 mm
Ground Clearance (minimum)	480 mm
Tail Swing Radius	2,890 mm
Track Length on Ground	3,640 mm
Track Length	4,450 mm
Technical Specifications
Operating Weight	23,550 kg
Ground Pressure	36.3 kPa
Engine	QSB6.7
Displacement	6.7 L4
Gross Power	122 kW/163.6 HP
Hydraulics	Positive Flow Control with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	444.0 L/min
Operating Pressure (maximum)	34.3 MPa
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa
Travel Speeds (maximum)	3.1 / 5.3 km/h
Travel Effort (maximum)	180.0 kN
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	27.5 MPa
Swing Speed (maximum)	10.9 RPM
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	800 mm
Track Rollers (per side)	9
Carrier Rollers (per side)	2
Working Range
Boom Length	5,700 mm
Stick (Arm) Length	2,925 mm
Maximum Digging Height	9,180 mm
Maximum Dumping Height	6,670 mm
Maximum Digging Depth	6,600 mm
Maximum Vertical Wall Digging Depth	5,980 mm
Maximum Reach at Ground Level	10,307 mm
Minimum Swing Radius	3,730 mm
