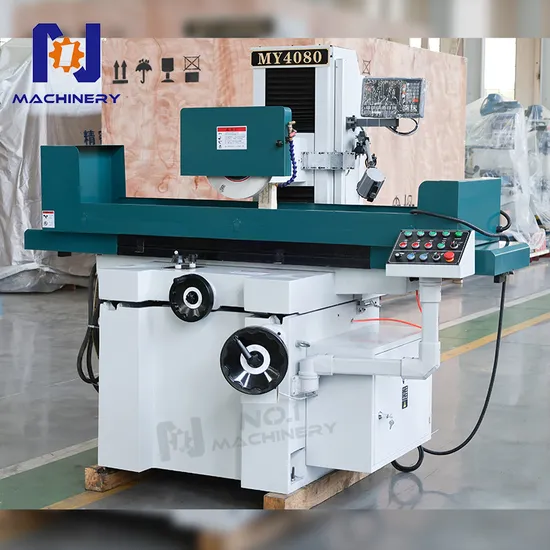

High Precision Automatic Dro 800*400 Surface Grinding Machine Metal Hydraulic My4080

Product Description

Product Description

The machine tool applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.It can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters

Technical specifications	Unit	MY4080
Workbench size (length * width)	mm	800*400
Maximum left and right movement	mm	850
Maximum front and back movement	mm	430
Maximum distance from the spindle center to the workbench	mm	540
Maximum load-bearing capacity of the workbench	kg	550
T-slot of the workbench	mm	14*3
Workbench speed	m/min	5-25
Front and rear handwheel feed	mm	0.01mm/grid 2mm/circle
Front and rear movement speed	mm/min	50HZ 1130
Grinding wheel size	mm	350*127*40
Grinding wheel speed	r/min	1450
Spindle motor	KW	4.5
Surface roughness	um	Ra:0.63
Net weight of the machine	KG	2700
Packing size (length * width * height)	mm	2350*2300*1980

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
