US$16,000.00
|
1 sets
(MOQ)
|
Basic Info.
Local Service Location
Russia
Machine Type
Wire Mesh Welding Machine
Control System
PLC+Touch Screen
After-Sales Service Provided
Video Technical Support
Wire Diameter (mm)
5 - 12 mm
Warranty of Core Components
1 Year
Video Outgoing-Inspection
Provided
Marketing Type
Hot Product 2022
Core Components
PLC, Motor
Transport Package
Standard Packages
Production Capacity
20 Sets Per Month
Product Description

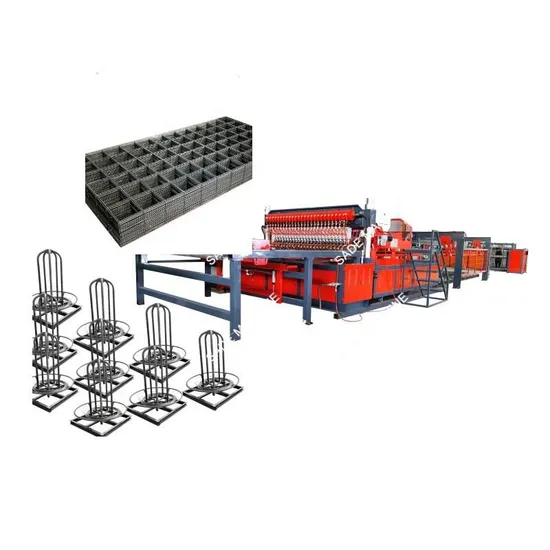

automatic 5-12mm pneumatic wire mesh welding machine
This is our new developed pneumatic welding machine . The (5-12mm) welding speed can be up to maximum 120 times/min.It has advantage of easier machine maintenance, less machine problem, easier to learn and operate, save power and consumption, less welding spark etc.
machine key words :Reinforcing mesh welding machine/steel wire mesh welding machine/steel rebar mesh welding machine/reinforced wire mesh welding machine/conctruction mesh welding machine/grating welding machine/Steel grating welding machine/Metal mesh machine manufaturing
| Model | GWJ-2500A/3000A |
| Wire Diameter | 5-12 mm |
| Wire Type | pre-cut wire |
| Mesh Size | 100-100/200-200/300-300 |
| Mesh Width | Max.2500/Max.3000 |
| Welding Speed | 80-100 times/min |
| Rated Voltage | 380V 50Hz |
| Driving | Pneumatic |
| Contro System | PLC(Siemens/Mitsubishi/other) |
| Kew Words | reinforcing concrete wire mesh welding machine |
| | |
| ♦ line wire feeding rack and feeding device adopts with pneumatic type and servo motor to supply precise actons |
| ♦ pneumatic driven way supply more faster speed in welding and equipped with automatic feeding device which can load 1000kg wires |
| ♦ welding machine equpped with quality aire cylinders and copper blocks to be sure the longer working servie life and cooling by natual water |
| ♦ automatic mesh transfer and stacking device supply Max.6000 mm length stacked mesh sheets |
>>
