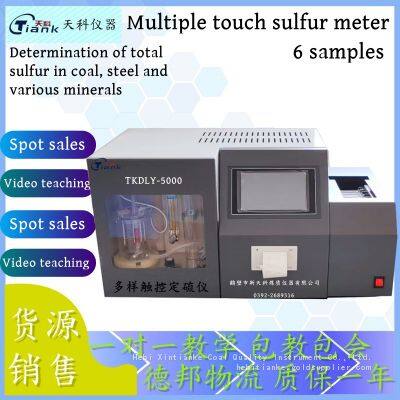

TKDLY-5000Multiple touch sulfur meter
1. Scope of application:
It is mainly used to determine the content of total sulfur in coal, steel and various minerals. It is an instrument for laboratories of coal, electric power, chemical industry, building materials, metallurgy, geological exploration, commodity inspection and testing departments. It meets the requirements of GB/214-2007 method for determination of total sulfur in coal.
2. Performance features:
1. Continuous and dynamic test: it has a continuous automatic sample sending mechanism, which can put 6 samples at one time, and can continue to add samples at any time during the test process.
2. The results are accurate and fast, and the air pump is used to ensure that all the combustion gas products enter the electrolytic cell, so as to ensure fast and accurate.
3. High automation: automatic sample delivery, automatic start and end of tests, automatic data processing, data storage and report printing, basically unattended, greatly improving work efficiency.
4. High reliability: external balance can be added to realize automatic weighing and flexible utilization; A number of hardware and software protection and self diagnostic technologies are adopted to ensure the stable operation of the equipment.
6. It has the function of low temperature sleep: it can prolong the service time of high-temperature furnace and silicon carbon tube.
7. Report field design: the corresponding test report format can be designed on site according to customer requirements.
8. It has the function of intelligent terminal, provides a variety of network access methods, realizes data sharing combined with the data interaction center, and realizes real-time data uploading to the management system.
3. Technical parameters
| Sulfur resolution: | 0.01% - 80%, resolution 0.01 |
| Sulfur range: | 0.01% to 40% |
| Test time | 3 to 8 minutes/piece |
| Temperature control accuracy: | 1 ℃ |
| High temperature: | 1200 degrees Celsius |
| Number of samples: | 6 (samples can be added continuously) |
| Test temperature: | 1050 ℃ or 1150 ℃ (coal), 920 ℃ (oil), or self setting |
| Sample weight: | 50mg |
| Precision: | meet standard requirements |
| Power | 220 V+22 V, 50 Hz+1 Hz |
| Power: | 3 kW |
Product Photograph
Company profile
Hebi xintianke coal quality instrument Co., Ltd. is committed to providing cost-effective coal testing equipment and overall solutions for coal testing instruments in the field of coal quality analysis instruments. Now we sell coal quality analyzers, calorimeters, sulfur meters, coal quality testing instruments, coal index tests, coal quality testing instruments, coal testing equipment, coal quality analysis instruments, coal coke testing equipment, coal testing equipment.
>>
