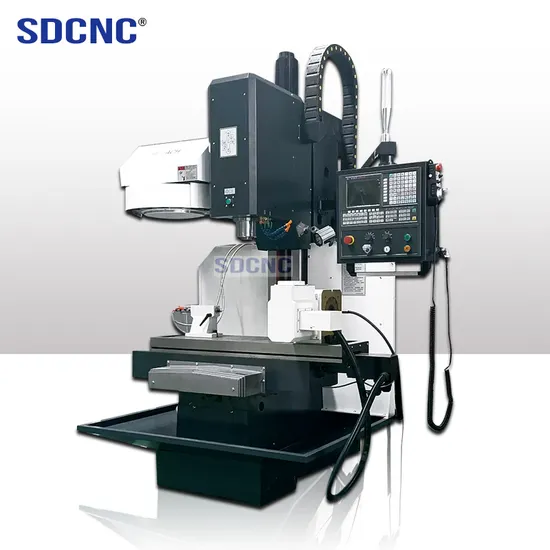

Sdcnc Small CNC Milling Machine Metal Mini CNC Milling Machine Center Xk7126

Product Description

1. Production introduce and useXH7126 vertical machining center the overall rational layout is compact, stable performance and reliable quality,
which can realize the X, Y, Z three-axis linkage, widely used in mechanical processing of aerospace, mould,
automobile, internal combustion engines, textile machinery industries.2. Main structure characteristicX, Y, Z adopts linear guide, made by Taiwan, greatly improve the machining accuracy and efficiency of the machine.
Three-way feed adopts large pitch, high-precision ball screw, three-axis servo motor and ball screw adopt direct
connection form, adopt imported non-clearance elastic coupling, drive no clearance, small inertia, high transmission
rigid, to ensure the positioning accuracy of the machine;The ball screw support adopts pre-tensile structure, which
greatly reduces the influence of thermal deformation on the accuracy of the machine during the long running time.

SPECIFICATIONS

items	unit	XH7126(XK7126 )
talbe	Table size	mm	800×260
	T-slot size T	mm	14×3×80
	Max.loading capacity of table	Kg	200
travel	Travel X,Y,Z	mm	450×320×420
	Spindle nose to work table	mm	90-510
	Spindle center to column guideway face	mm	330
feeding	Rapid moving of X,Y,Z	m/min	15,15,15
	Feeding speed X,Y,Z	mm/min	1-6000
spindle	Spindle nose taper		BT40
	Spindle speed range	r/min	8000rpm
	Spindle power	kW	3.7
accuracy	Position accuracy of X/Y/Z	mm	±0.015
	Re-position accuracy	mm	±0.0075
magazine tool	Tools numbers	pcs	12(XK7126 without magazine tool)
	Max. weight of tools	Kg	8kg(XK7126 without magazine tool)
	Max. size of tools	mm	Φ130×300(XK7126 without magazine tool)
other	Overall dimension	mm	2200×1900×2200
	weight	Kg	2400

---
