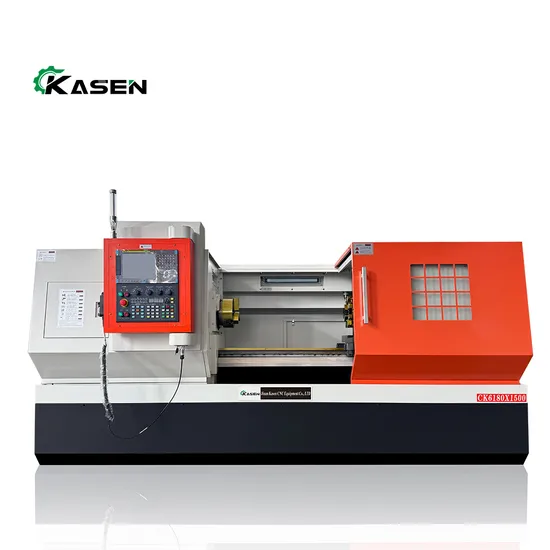

Ck6180 CNC Lathe Metal Turning Hard Rail CNC Lathe

Product Description

Automatic CNC Heavy Duty Lathe Machine CK6180 Horizontal Cnc Lathe Machine
Product Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:550mm bed width,4 station electric tool postSpindle hole 105mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,6/8 station electric turret,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters

SPECIFICATIONS	Units	CK6163	CK6163	CK6180	CK6180
		Light weight	Heavy	Light weight	Heavy
Swing over bed	mm	630		800
Swing over cross slide	mm	350		520
Distance between centers	mm	1000/1500/2000/3000/4000/5000/6000		1000/1500/2000/3000/4000/5000/6000
Guideway width	mm	550		550
Max. load capacity	T	3		3
Spindle bore	mm	105		105
Spindle bore taper	-	Metric φ120/MT5		Metric φ120/MT5
Spindle nose type	-	C11		C11
Spindle speed steps	-	VF. 3 steps	HYD. 4 steps	VF. 3 steps	HYD. 4 steps
Spindle speed range	rpm	10-1000	17-1000	10-1000	17-1000
Chuck	mm	φ315 3-jaw manual		φ315 3-jaw manual
Turret/tool post	-	Electric 4 position		Electric 4 position
Tool size	mm	32 x 32		32x32
X axis travel	mm	320		420
Z axis travel	mm	850/1350/1850/2850/3850/4850/5850		850/1350/1850/2850/3850/4850/5850
X axis rapid traverse	mm/min	4000		4000
Z axis rapid traverse	mm/min	6000		6000
Tailstock quill diameter	mm	φ100		φ100
Tailstock quill taper	-	MT5		MT5
Tailstock quill travel	mm	250		250
Main spindle motor	kw	11		11
Coolant pump motor	kw	0.125		0.125
Weight for 1000	kg	3700		3900
Weight for 1500	kg	4100		4300
Weight for 2000	kg	4500		4700
Weight for 3000	kg	5300		5500
Weight for 4000	kg	6100		6300
Dimension for 1000	mm	3300x1750x1850		3300x1850 x1900
Dimension for 1500	mm	3800x1750x1850		3800x1850 x1900
Dimension for 2000	mm	4300x1750x1850		4300x1850 x1900
Dimension for 3000	mm	5300x1750x1850		5300x1850 x1900
Dimension for 4000	mm	6300x1750x1850		6300x1850 x1900

Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
