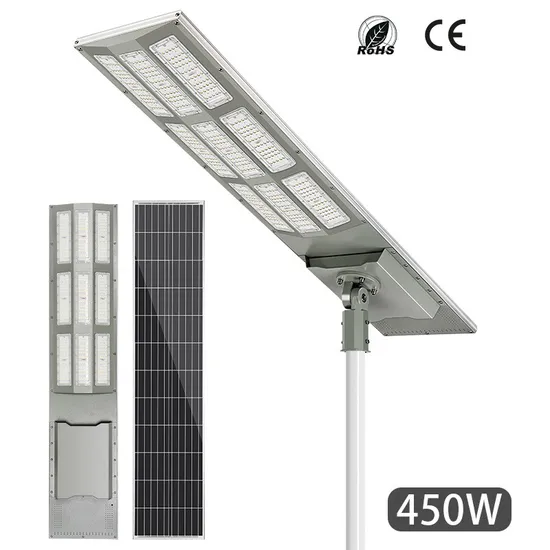

150W 300W 450W LED Ultra Wide Angle Solar Street Light

Product Description

Product Description
Patented Design: Ultra-wide Angle
1. Wide-lighting Range:
The lighting range of the light can reach 260., significantly improving the installation spacing range of the light.
2. Long Light Range:
With a 90.optical lens, it has excellent concentrating performance and a long light range. When the lights are installed at a high place, the light can still illuminate the ground.
3. Strong Visual Range of Light:
The same configuration lights are installed at the same height. The lights of wide-angle lights can be visible to the light, and the area of the ground lights is wider.
Product Parameters

Power	150W	300W	450W
Lamp Size	340*1200*38mm	340*1400*38mm	340* 1600*38mm
Solar Panel Power	6V 70W	6V 80W	6V 100W
Solar Panel Size	330* 1200mm	330*1.400mm	330*1600mm
Battery Capacity	3.2V 70Ah	3.2V 80Ah	3.2V 100Ah
LED QTY	150 pcs	300 pcs	450 pcs
LED Brand	CREE
LED Type	3030
Material	Aluminum
|IP Rating	IP65
IK Rating	IK08
Working Temp	-35°C~55°C / -31°F~131°F
CRI	>70
CCT	3000K~6500K
Life Span	>50,000h
Installation Height	6m ~ 8m / 19.69ft ~ 26. 25ft	8m ~ 10m / 26.25ft ~ 32 81ft	10m~ 12m / 32.81ft ~ 39.37ft

Installation Height
Three-side Lighting Design
The solar street light uses our patented wide -angle lighting technology with three -sided
lighting modules. The lighting angle can reach 260°, significantly increasing the iluminated
area. 180° Adjustable Bracket
The conventional matching mounting bracket has an adjustable angle of 180°, which can
easily adjust the installation angle of the lamp. This solar street light can be matched with four
kinds of mounting brackets to meet the different installation needs of customers.
High Charging Efficiency
We have adopted a variety of technologies to improve the charging efficiency of this solar
street light, namely:
1. The controller of MPPT can effectively improve the charging efficiency,
2. Monocrystalline silicon solar panels, the charging efficiency is 21% higher than that of
ordinary solar panels;
3. The patented 24K gold-plated plug can reduce the line loss rate during solar energy
transmission.
Product Details
The Benefits
The Benefits Of our Ultra-wide Angle Solar Street Light
Save The Cost of Light Pole:
The light with wide -angle can use a 4M light pole to achieve the effect of a 6M light pole with a normal luminous angle light.
Reduce The Number of Lights:
Because the wide-angle light has a wide range of lighting, the installation spacing between two lights is added. Therefore, wide-angle lights must be installed less on the road the same distance.
Applying wide-angle solar street lights in engineering can effectively save engineering costs:
Because the length of the light rod is reduced, the cost, logistics costs, and the installation cost of the light rod are significantly reduced.
Because the number of lights is reduced, the lamps' purchase and logistics costs are significantly reduced.
