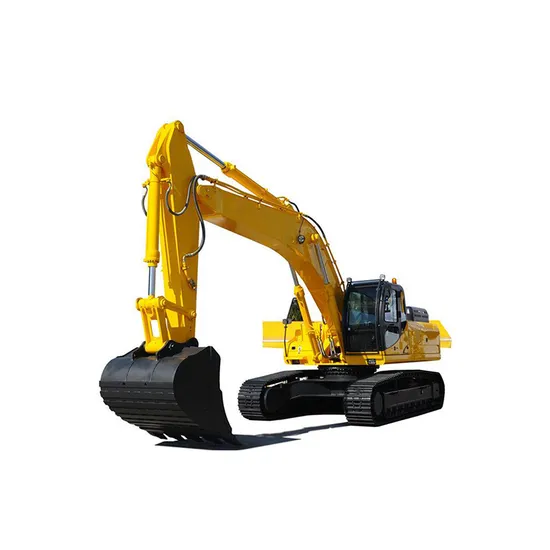

Hot 21 Ton Hydraulic Digger China Crawler Excavator Price Xe215da

Product Description

21Ton Heavy Duty Crawler Excavator XE215DA
Product Description: 1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
Product Parameters:

Model		Unit	XE215DA
Operating weight		Kg	21500
Bucket capacity		m³	1.05
Engine	Model	/	QSB7
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	No. of cylinders	/	6
	Rated power	kw/rpm	135/2050
	Maximum torque/speed	N.m/rpm	740/900-1600
	Displacement	L	6.7
Main performance	Travel speed	km/h	5.4/3.1
	Swing speed	r/min	11.8
	Gradeability	°	≤35
	Ground pressure	kPa	47.2
	Bucket digging force	kN	149
	Arm digging force	kN	111
	Maximum traction	kN	184
Hydraulic system	Rated flow of main pump	L/min	2×216
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	27.5
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	220
	Engine oil capacity	L	19.5
Appearance size	A Overall length	mm	9625
	B Overall width	mm	2990
	C Overall height	mm	3100
	D Width of platform	mm	2830
	E Track length	mm	4255
	F Overall width of chassis	mm	2990
	G Track width	mm	600
	H Length to center of rollers	mm	3462
	I Track gauge	mm	2390
	J Counterweight clearance	mm	1050
	K Min. ground clearance	mm	486
	L Min. tail swing radius	mm	2844
	M Track height	mm	942
Working scope	A Max. digging height	mm	9620
	B Max. dumping height	mm	6780
	C Max. digging depth	mm	6680
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	6500
	E Max. vertical wall digging depth	mm	5715
	F Max. digging radius	mm	9940
	G Min. swing radius	mm	3530
Standard configuration	Length of boom	mm	5680
	Length of arm	mm	2910
	Bucket capacity	m³	1.05

Product Show
