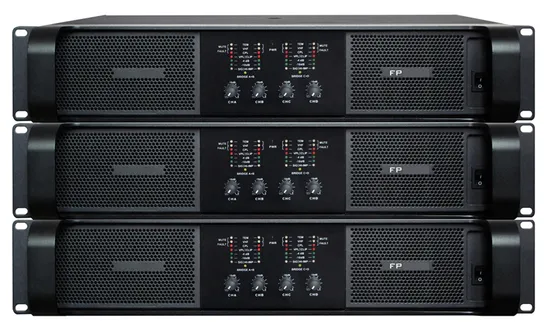

FP1000 is class TD switch amplifier, 2U rack. It is Light weight only 13KG,supply 10000W power output, The global power supply works anywhere in the world and offers PFC ( Power Factor Correction). It can be used for church,concert,nightclub,stadium,theater,speech,big live sound reinforcement etc.
| Model | FP10K |
| Output Power(20-20kHz, 1W with 1 kHz ) | 4 Channel |
| 8ΩStereo Power(RMS) | 1300WX4 |
| 4ΩStereo Power(RMS) | 2200WX4 |
| 2ΩStereo Power(RMS) | 2600WX4 |
| 8ΩBridged Power(RMS) | 4200WX2 |
| 4ΩBridged Power(RMS) | 5000WX2 |
| FrequencyResponse(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Damping factor | >1000 |
| Channel separation (Cross talk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Speakon or Binding Posts 2-pole |
| Class circuitry | Class TD |
| Tour Class Protection | ACL, IGM, Auto Ramp, short circuit, DC voltage, |
| turn-on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage, 230 V / 115 V normal | 150-260 V50/60Hz, / 70-140 V 50/60Hz selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance (unbalanced) | 20 k Ohm (10k Ohm) |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detente from -into 0 dB |
| Dimensions (H×W×D) | 2U: 88×483×396mm |
| Net weight (kg) | 13 KG |
| Gross weight (kg) | 15.5 KG |
1. Imported USA component, USA technology.
2. Fast production lead time;
3. High quality and competitive price;
4. Professional factory. Workers are working with rich experience and good workmanship.
5. Product sound and performance it can compare with international famous brand.
