Reasonable Price Animal Feed Pellet Processing Machine

Product Description

Reasonable Price Animal Feed Pellet Processing Machine
Product Description

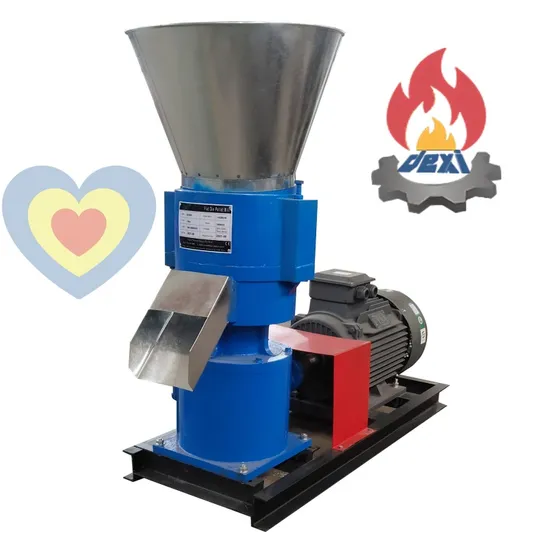

SKJseries animal feed pellet making machine is the ideal equipment for farm using, it is good for making different kind of materials into animal feed pellets, for feeding different type of livestock, such as cow, cattle, horse, sheep, goat, goose, chicken, duck, rabbit...
It also has several models, the customer can according their own demand to select the sutiable model, the SKJ series animal feed pellet making machine mainly using for poultry feed pellets making,it is good at press grass, straw, ground nuts shell, corn straw and other agriculture waste into animal feed pellets or biomass pellets. This poultry feed machine also can make organic fertilizer pellets for farming using, by press the animal waste.

Machine's advantages:
1.It is the ideal equipment for household use to make animal feed pellet.
2.Using high efficiency motor to provide the power.
3.Through the cardan connecting the motor and the gearbox.
4.Inside the gearbox, the gear is same as truck rear axle gear, so easy to get repaired locally.

Product Parameters

Model	Power(kw)	Capacity forpellets(kgs/h)	Weight of themachine(kgs)	Dimension of themachine (mm)
SKJ2-120	3	70-100	50	1150×300×550
SKJ2-150	7.5	100-300	150	1260×400×650
SKJ2-200	11	300-500	200	1300×500×850
SKJ2-250	15	400-700	500	1400×600×1000
SKJ2-300	30	600-1000	760	1860×670×1600

Detailed Photos
The coupling is easy to install and operate.
The Adjust screw can adjust the distance between pressure roller and grinding disc.
Making particle must keep the nuts on both sides balanced,to avoid damaging pressure roller and grinding disc.
Pellet making process:
Generally, there are two types of flat die pellet mills in the market, the rotating die type and the rotating roller type. The former one has a stationary roller with the rotating die while the latter has a stationary die with a rotating roller. Adopting vertical principle, the raw materials drops down by the its own weight into the pelletizing chamber where they are compressed between the rollers and die to form pellets by going through the die holes.
The SKJ2-150 adopted the rotating die type.
Certifications:
Application:
Packaging & Shipping
Simple feed pellet line

---
