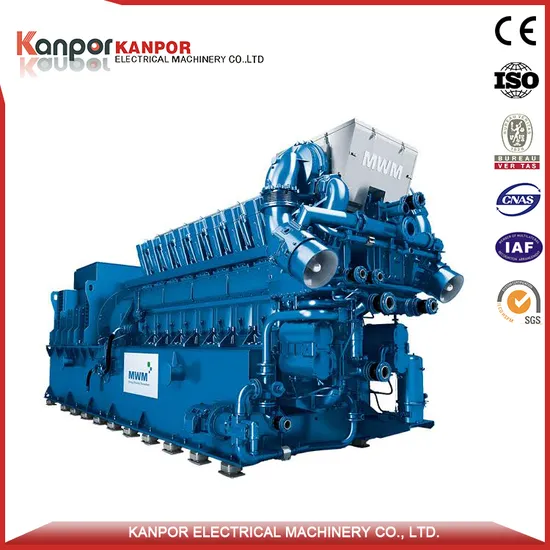

Mwm 4000kw 4MW Natural Gas Power Generator Ready Stock

Product Description

1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION

Model	Rated Power (kW)		Engine model	Alternator model
TCG2032V16	4300		TCG2032V16	DIG 156/6 10500V
Genset Data	Size & Weight (Open type)		9481*2790*4252mm (51200kgs)
	Frequency		50Hz
	Standard Features		Radiator 50OC max,fans are driven by belt, with safety guard/Ripple flex exhaust pipe, exhaust siphone, flange, muffler
	Voltage		10500V
	Phase & Wires		3phase, 4wires
	Rated Power Factor		cos phi 1.0
	Performance Class		G2
	Fuel		Natural gas
	Fuel Tank		Not included
	Status		Stock with 0 running hours
Engine Data	Brand & Model		MWM TCG2032V16
	Cycle		4 stroke
	Air Intake Way		Turbo
	Governor		Electronic
	Cylinder		16
	Bore*Stroke (mm)		260*320
	Displacement (L)		272
	Fuel Type		Natural gas
	Compression Ratio		12:1
	Lubricating Method		Pressure and splash lubrication
	Combustion System		Direct injection
	Speed		1000RPM
	Cooling Way		Water cooled
Alternator Data	Brand & Model		DIG 156/6 10500V
	Alternator Power		5500kVA
	Frequency & Speed		50Hz, 1000RPM
	Phase & Voltage		3 phases 4 wires & 10500V
	System		Brushless AC Synchronous, Single bearing
	Insulation & Protection		H, IP23
	Voltage Regulator		Standard AVR
Control System	Brand & Model		MWM TEM EVO
	Engine start sequences. Engine and generator protection
	Diesel and gas genset support
	Engine communication via CANbus. Run coil and crank configurable when using the electric engine
	High Coolant temperature protection; Low Oil pressure protection. Over speed protection
	Over load protection; Generator over/under frequency protection: Generator over/under/unbalance voltage protection

3. PRODUCT FEATURES
(1) Full control panel with power indicator light and oil light.
(2) Emergency shutdown for low oil pressure and high water temperature.
(3) Large fuel tank ensure continuous running.
(4) Low noise & vibration.
(5) Compact structure.
(6) Reliable performance.
(7) Easy for installation and maintenance.
(8) 50Hz and 60Hz both are available for choice

---
