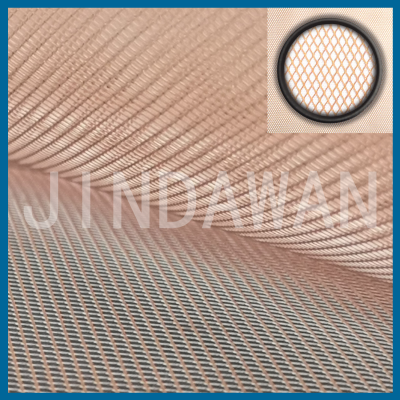

Ultra Light Expanded Copper Mesh as Lightning Strike Protection Material

Product Details

Product Description

Product Description
Product Description
By using our micromesh, the lightning strike energy is dissipated over the surface of the component, which prevents damage to the composite material below.
Our expanded metal foils are the materials of choice for lightning strike protection in composite aircraft structures. We are the supplier of many famous aircraft and rotorcraft manufacturers in China.
JDW Micromesh's Advantages:
1. do not unravel or have loose strands that become problematic during processing into a pre-preg material or when conducting a dry lay-up.
2. ensures uncompromised conductivity between strands when forming the material to a variety of shapes and contours and provides a smooth surface on the end product.
3. tightly control the manufacturing process to meet a specific weight, open area, and conductivity requirement.
4. allow engineers the option of varying materials according to specific strike zones on the aircraft, minimizing the overall weight. Our common materials have the ability to withstand strike of 200,000 amps.

Copper Material Specifications
KINSON® type		Cu73	Cu73A	Cu108	Cu142	Cu195
Weight g/squaremeters (±6%)		73	73	107	142	195
LWD mm(±0.01mm)		2.54	2.54	2.54	2.54	2.54
Thickness mm(±0.005mm)		0.050	0.100	0.102	0.152	0.152
Open Area %(±5%)		80	80	75	80	65
Resistivity(mΩ)	LWD	≤3.12	≤3.12	≤2.10	≤1.60	≤1.10
	SWD	≤12.00	≤12.00	≤6.30	≤4.80	≤3.60

---
