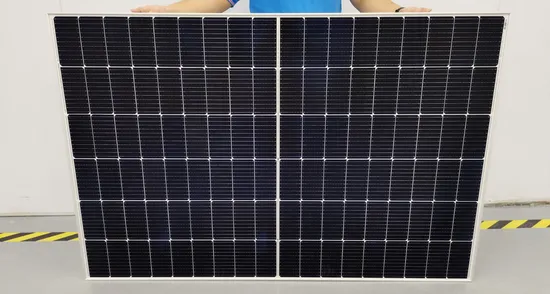

435W High Power Density Mono Solar Module

Product Description

Introduction
Introducing the 435W High Power Density Mono Solar Module, a cutting-edge solution for harnessing solar energy efficiently. This Solarpro MONO half-cut single module is assembled with N-topcon cells, ensuring top-notch quality and performance.
The half-cell configuration of the modules offers numerous advantages, including higher power output, reduced shading effect on energy generation, lower risk of hot spots, and enhanced tolerance for mechanical loading. With cell temperature dependent performance, this solar panel is designed to maximize energy production in various conditions.
Upgrade your solar power system with this high-power density solar module, perfect for residential, commercial, and industrial applications. Invest in sustainable energy solutions with this reliable and innovative solar product.
Parameters

ELECTRICAL PARAMETERS AT STC
Module Type JMDxxxN-108M(xxx=Pmax)
Maximum Power (Pmax/W)									415	420	425	430	435
Open Circuit Voltage(Voc/V)									37.80	38.00	38.20	38.40	38.60
Short Circuit Current(Isc/A)									14.01	14.09	14.17	14.25	14.32
Maximun Power Voltage(Vmp/V)									31.42	31.61	31.80	31.99	32.18
Maximum Power Current(Imp/A)									13.21	13.29	13.37	13.45	13.52
Module Efficiency(%)									21.30	21.50	21.80	22.00	21.30
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m², spectrum AM1.5 and cell temperature of 25°C.
ELECTRICAL PARAMETERS AT NOCT
Maximum Power (Pmax/W)									312	316	320	323	327
Open Circuit Voltage(Voc/V)									36.00	36.19	36.38	36.57	36.76
Short Circuit Current(Isc/A)									11.30	11.36	11.43	11.49	11.55
Maximun Power Voltage(Vmp/V)									29.36	29.54	29.72	29.90	30.07
Maximum Power Current(Imp/A)									10.65	10.72	10.78	10.85	10.90
* Under Nominal Module Operating Temperature (NOCT), irradiance of 800 W/m², spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.
TEMPERATURE CHARACTERISTICS
NOCT		45±2°C			Temp Coefficient of Isc						+0.045%/°C
Temp Coefficient of Voc		-0.250%/°C			Temp Coefficient of Pmax						-0.290%/°C
PACKING CONFIGURATION
Packaging box dimensions(L*W*H)	1745*1110*1260mm	Box weight	772kg
Modules/Pallet	36 Pieces	Modules/40'Container	936 Pieces

Features
1. Higher Durability: The multi-busbar design reduces the risk of cell micro-cracks and broken fingers.
2. PID Resistant: Tested according to IEC 62804 standard, our PV modules are resistant to PID, ensuring the security of your investment.
3. High Power Density: Achieve high conversion efficiency and increased power output per square meter due to lower series resistance and improved light harvesting.
4. Bigger Cells with Better Performance: A slight increase in cell size results in a six percent average performance boost in our newest modules.
Assurance 12-year warranty for material and technology
25-year linear power output warranty
Certifications-IEC61215, IEC61730
-ISO9001:2015 Quality management systems
-ISO14001:2015 Environmental management systems
-ISO45001:2018 Occupational health and safety
management systems
Applications
Home Power Supply
Effortlessly power your home lighting, appliances, and equipment with solar panels installed on your roof or balcony.
Industrial Applications
Enhance industrial production processes with continuous and stable power supply for machinery, equipment, and lighting facilities using solar panels and battery packs.
Transportation
Reduce energy costs and carbon emissions by utilizing solar panels to power vehicles like cars, planes, and ships.
Welcome to Ningbo Star The Force International Trade Co., Ltd.Explore our range of high-quality solar products:
Solar panelsPower invertersEnergy storage batteriesSolar lightsAnd more!Our lead time for mass production is typically 15 to 30 days, but we are flexible based on production schedules.
If you can't find what you need on our website, simply provide us with the product information, and we will locate it for you.
We aim to provide quick quotes, usually within 24 hours of receiving your inquiry. For urgent requests, feel free to call or email us for priority.
Request samples after price confirmation to check our quality. A sample fee may apply, but it is refundable upon placing an order later.
We offer OEM & ODM services, allowing you to customize packaging with your logo design.

---
