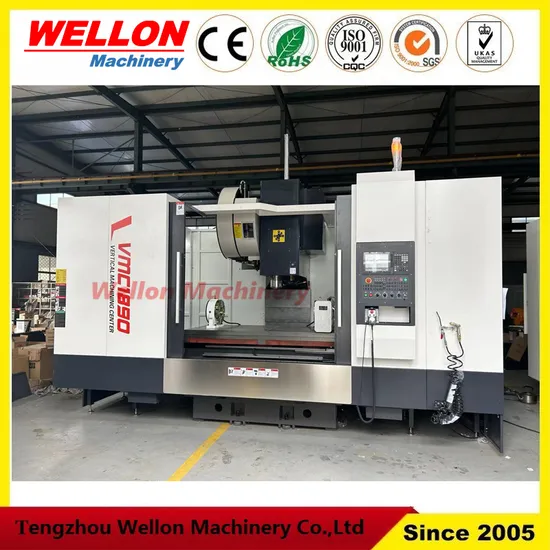

Vmc1890 Wellon Heavy Duty CNC Machining Center/CNC Milling Machine

Product Description

Detailed Photos
1. Resin sand casting, Meehanite HT-300;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Roller type linear guideway from Taiwan
4. Ball lead screw from Taiwan
5.Can choose belt driven spindle and direct driven spindle;
6. Taiwan pneumatic cylinder;
7. Taiwan ATC, umbrella type and disc type both are available;
8. Import bearings for leadsrews;
9. Import coupling;
10. Headstock Nitrogen balance system as optional;
11. Full enclosed cover;
12. Rigid tapping;
13. Spindle center ring blast;
14. Work lamp;
15. Pilot lamp;
16. USB interface;
17. Manual pulse generator (MPG);
18. Centralized automatic lubrication system.
19. Cooling system.
20. Heat exchanger for electrical cabinet ;
21. Leveling blocks & bolts;
22. Air gun+Water gun
23. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Product Parameters

Item	Unit	VMC1890
X axis travel	mm	1800
Y axis travel	mm	900
Z axis travel	mm	800
Spindle nose to worktable	mm	150-950
Spindle center to column	mm	965
Leadscrew diameter	mm	Φ55
Linear guideway width	mm	55/55/55
Worktable Length	mm	2000
Worktable width	mm	900
Max loading capacity	kg	2000
T-slots(NO./width/pitch)		7-22*120
Spindle speed	rpm	6000
Main motor power	kw	15/18.5
Spindle taper		BT40-150
Fast moving speed (X/Y/Z)	m/min	30/30/24
Cutting speed	mm/min	1-10000
Feed motor torque	Nm	37/37/37
Feed motor power	kw	4.5/4.5/4.5
Capacity	pcs	Arm 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Length	mm	4300
Width	mm	3100
Height	mm	3500
Weight	kg	14000

Standard accessories:
Fanuc 0i-MF(5) controller
10000rpm belt type spindle from Taiwan
BT40 Spindle taper
24 tool ATC from Taiwan
Ball leadscrew from Taiwan
Linear guideway from Taiwan
Full closed covers
Telescopic cover for all axis
Delixi electrical components
MPG
Heat exchange in cabinet
USB+Ethernet,Interface
Work lamp +Tir-color alarm lamp
Air gun+water gun
Automatic lubricating
Coolant system
Automatic power off
Rigid tapping function
Leveling pad
Tools and tool box
Optional accessories:
Direct driven spindle from Taiwan with 12000
Spindle oil cooler
Spiral type chip conveyor
Chain type chip conveyor
Flushing system
Air conditioner in cabinet
Nitrogen balance cylinder
Spindle center water spray 20bar
Spindle center water spray 30bar
Schneider electric components
BBT40 Spindle taper
SK40 Spindle taper
Tool probe,TS27R Renishaw
workpiece measurement device OMP60 Renishaw
4 axis 255mm+tailstock(Fanuc)
Oil Skimmer
Safety door
Spindle gear box
Gear head
Spiral+Chain type conveyor
