Product Details
Product Description
Product Description
Filter Element Application:

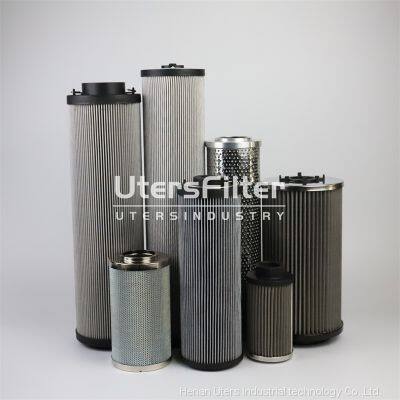

The hydraulic oil filter element is an indispensable part of the pipeline series of the conveying medium. It is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminants in the fluid medium and to protect the normal operation of machinery and equipment.
The application range of hydraulic oil filter elements is very wide, covering almost all industries: steel, electric power, metallurgy, shipbuilding, aviation, paper making, chemical industry, machine tools and construction machinery, construction machinery and other fields.
Filter Element Features:
1. Filtration accuracy: 1-200um filtration ratio: X≧99.9
2. Working pressure: (MAX) 21Mpa
3. Working medium: hydraulic oil; lubricating oil; fluid medium such as industrial water
4. Working temperature: -30℃~+110℃
5. Filter material: high-strength stainless steel mesh; glass fiber; filter paper and other materials
6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
Quality Standard:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 4572------Multi-pass Performance Testing
Package Pictures
Product Extension
UTERS replace of Bosch Rexroth R928017119 9.60LA PWR10-F00-0-M SO3000
UTERS replace of Bosch Rexroth R928017462 10.60LA PWR3-A00-6-M SO3000
UTERS replace of Bosch Rexroth R928040797 1.2000 PWR10-A00-0-M
UTERS replace of Bosch Rexroth R928053299 2.Z025 H6PZ-B00-0-M
UTERS replace of Bosch Rexroth R928036957-2.Z025 H3XL-B00-0-M
UTERS replace of Bosch Rexroth R928054757 10.950LA PWR3-A00-B6-M SO3000
UTERS replace of Bosch Rexroth R928057916 1.2500 PWR10-A00-0-M
UTERS replace of Bosch Rexroth R928006485 2.0045 Н10XL-A00-0-M
UTERS replace of Bosch Rexroth R928006647
UTERS replace of Bosch Rexroth R928006647
UTERS replace of Bosch Rexroth R928006049 2.0004 G10-A00-0-M
UTERS replace of Bosch Rexroth 2.0004 G25-A00-0-M
UTERS replace of Bosch Rexroth 2.0004G25-AE0-0-V
UTERS replace of Bosch Rexroth R928006683 2.0040 PWR10-B00-0-V
UTERS replace of Bosch Rexroth 2.0040 H6XL-B00-0-M
UTERS replace of Bosch Rexroth 2.0040G25-A00-0-V
UTERS replace of Bosch Rexroth R928006680 2.0040 G25-B00-0-V
UTERS replace of Bosch Rexroth R928006710 2.0063 H10XL-B00-0-M
UTERS replace of Bosch Rexroth R928006698
