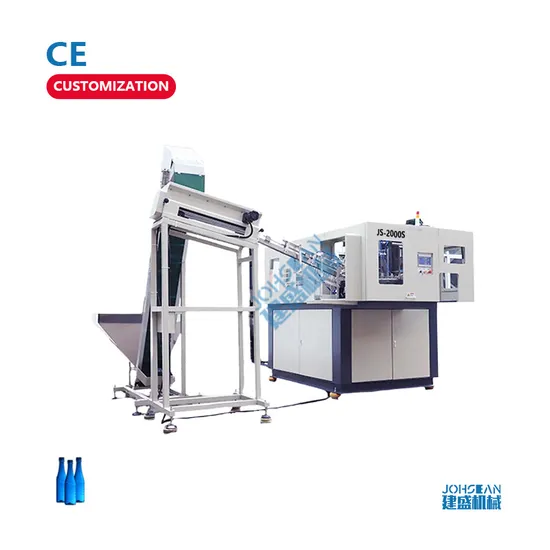

100ml-20L Servo Plastic Beverage Bottle Blow Molding Machine /Water Food Packaging Bottle Jar Injection Blower Moulding Making Pet Preform Blowing Machine

Product Description

Blow Moulding Machine PP&Pet Bottle Milk Bottle Blow Molding Machine
Our factory bottle blow molding machine can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipes are used in the machine. It has high pressure protection with the feature of precisely removing mould. It is easy to maintain .It is the equipment for producing PET bottles.

		JS-2000X
Production capacity	BPH	2000-2300
Number of Cavity	/	2
Clamping force	kN	160
Mould opening stroke	mm
Stretch stroke	mm	280
Max. Container Volume	liters	0.7
Max. Neck Size	mm	40
Max. Bottle diameter	mm	70
Max. Bopttle height	mm	280
Installed Power	kW	25
Max. Heating Power	kW	24
Operating Air Pressure	Kg/cm²	8
Operating Air Consumption	liters/min	1300
Blowing Air Pressure	KG/cm²	30
Blowing Air Consumption	liters/min	1500
Cooling water Pressure	Kg/cm²	4-5
Cooling water Temperature	°C	10-20
Cooling water Flow	liters/min	100
Measurement (L x W x H)	m	2.5X1.9X2.2
Weight	Ton	2.3

Internal details of the Machine

---
