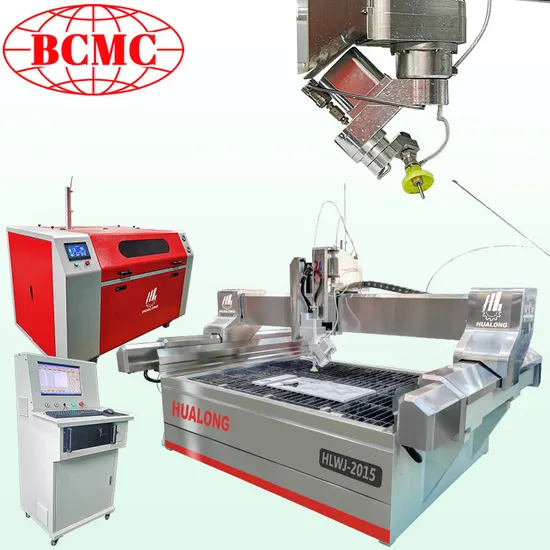

2025 Bcmc Hualong Machinery 5 Axis CNC Water Jet Glass Cutting Machine

Product Description

BCWJ-3
The 020/4020 utilizes a very high-pressure jet of water and abrasive (typically garnet) to erode a precise, narrow line in the stock material. It is an industrial tool capable of cutting almost any material with exceptional precision. This 5-axis waterjet cutter excels at applications requiring intricate detail and accuracy.
It features the ability to cut
at
any angle within
±
60°, solving the traditional problem of water cutting inclination and achieving 2D/3D cutting with ease. The line cutting accuracy is maintained at
±
0.1mm, and the angle cutting accuracy is
±
0.1°. This machine is perfectly suited for cutting bevel surfaces, straight surfaces, conical surfaces, circular surfaces, rotating surfaces, grooves, chamfers, and complex arbitrary surfaces.
It boasts the versatility to cut a wide range of materials, including steel, stainless steel, aluminum, titanium, marble, granite, ceramic, glass, rubber, foam, and many others.
Main Features:

TECHNICAL DATA
Model No.		BCWJ-3020	BCWJ-4020
Working area	cm	330*210	410*210
X-axis stroke	mm	3200	4000
Y-axis stroke	mm	2000	2000
Z-axis stroke	mm	80-130	80-130
Max. angle of C axis rotation	°	+/- 360	+/- 360
Max. anglel of A axis swing	°	+/- 60	+/- 60
Cutting accuracy	mm	+/- 0.1	+/- 0.1
Repeatablbe accuracy	mm	+/- 0.05	+/- 0.05
Traverse speed	mm/min	5000/15000	5000/15000
Main motor power	kw	37	37
Dimensions (L x W x H)	cm	443x278x220	494x280x222

Capable of processing any curve cutting, offering flexibility, convenience, and versatility.Produces fast and smooth notches without dust, thermal deformation, or pollution. Ensures tension-free processed parts due to minimal cutting force.Narrow kerf - The water jet stream typically removes material in a 0.5-1.0 mm wide cut, optimizing material use and enhancing cost-effectiveness.Cut Recovery - Easily resume cutting from where the jet stopped.Programmable Z-axis height with retracting capability between pierces.Utilizes a servo motor, linear sledge, vehicles, and helical rack and pinions for rapid and smooth axial movement.High-Performance drive system allows for high-precision production of parts at the highest processing speeds.Driver system is sealed against water, dust, and grit, ensuring a long working life.Detailed Information For Spare Parts:High Pressure PumpFeatures imported core components that are durable and safe, pressurizing water and continuously outputting it to convert into a supersonic water jet at the cutting head.Maximum output pressure reaches up to 4137bar (60000psi) 400MPa, with sustainable cutting pressure up to 380MPa.
Movable Operator Station Equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface, keyboard, and mouse.Compatible with G code, PLT, and DXF files generated by CAD/CAM software such as UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw, etc.
Auto Abrasive Delivery System Efficiently transfers the abrasive to the abrasive regulator.Includes an air valve to prevent jams and breakages.
Auto control integrated with CNC auxiliary functions.
Self-sealing feature.
Allows for slight flow adjustments.
Automatic Water Cooling Tower Ensures the hydraulic system operates in a circular manner, conserving water.Water Jet SoftwareBrand: Weihong Origin: ChinaProvides a mature motion control solution, addressing high-pressure water jet taper, towing, and other technical challenges, ensuring precision and quality. Experience the precision of dynamic five-axis cutting,
Effortlessly intuitive: Easy to operate and to learn. Main MotorProduced by: Siemens Origin : China
Power: 37 kW
Efficiency: 92.7%
Transforms electrical energy into motion energy for the high-pressure pump. Intensifier
Delivers continuous high-pressure water flow.
Main parts sourced from Ashcroft, USA, ensuring
Stable performance and reliable operation Laser SensorBrand: WeihongOrigin: China
Automatic scanning precision altimeter maintains constant knife head distance from workpiece surface. Applications:
*
Stone/Ceramic industries: countertops, art puzzles, flooring inlays, mosaics.
*
Glass industry: bathroom glass, shop window glass, automotive glass, appliance glass.
*
Metal industries: stainless steel decoration, equipment cover cutting, metal parts cutting.
*
Gasket Cutting
*
Foam Product Cutting.

---
