Meltblown Non-Woven Fabric Filtration Fabric PP Meltblown Nonwoven Bfe95%/99% Pfe95% Mask Material Production Line

Product Description

1.6M PP SPUNBONDED NON WOVEN FABRIC PRODUCTION LINE
1. Production process route and process flow1. The production line adopts the technology of "slit negative pressure drafting".
2. Schematic diagram of spunbond process flow:Chip storage trough Air conveying device Screw extrusion melting Filtration Spinning air drafting Netting Hot rolling into cloth Rolling

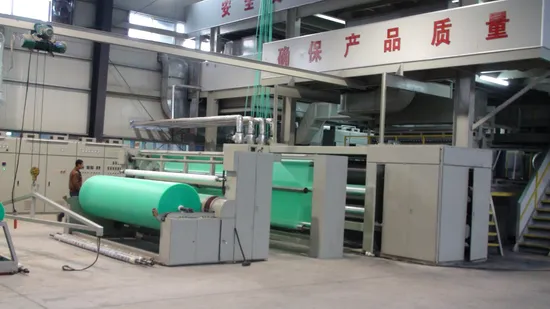

3. Effect picture (for reference only, no physical comparison):
P2. PRODUCTION LINE TECHNICAL DATA: Finished product width: 1600 (effective width) Maximum package diameter: Φ1500MM Capacity: calculated at 70 g/m2, 5 tons/24 hours Monofilament size S: less than 2.5 denier Product weight: (10~150)g/M3 Mechanical design speed: 150M/MIN; (actual production speed: 130 M/MIN) Product quality standards: According to the samples confirmed by both parties, according to the data confirmed by both parties. 3. Raw material requirements:
1) The main raw material is PP. The technical indicators of PP polypropylene chips are as follows:

projet	index	unit
Meltig point	164-170	ºC
densiy	0.91	g/m³
Melt flow index	35±5	g/10min
Molecular weight distribution index	<4
Isotacticity	>96	%
wet	<0.05	%
ash	<0.025	%

High processed products from PP spunbonded non woven fabric is widely used in medical, household products, agricultural protection, automobile accessories, decorative materials, waterproof materials, shoes, hats, bedding articles, travel products etc.

Medical and hygienic products:	Operation clothes, disinfect cloth, mask, diaper, beauty products, sanitary towel, pad and other one time health cloth etc.
Household products:	Flowers packing cloth, bag fabric, curtain, cover for household, table cloth, sofa cloth, mattress cloth and garderobe cover etc.
Daily commodity products:	Over-sleeve, apron, sauna suits, shopping bags, gift bags, store bags, advertisement bags etc.
For garments and shoes:	Ski shirt, quilt, work clothes, operation clothes, exposure suit, lining, clothing accessory, garment bag, sweater bag etc.
Industrial and agricultural purpose:	Filtering material, insulating material, carpet, car interior decoration cloth, oil absorption material, roadbed cloth, dykes and dams cloth, waterproof rolling fabric, covering cloth etc.

FAQ:
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.

7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.

8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.

9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.

---
